Belkin 4-port Dual-Head DVI-D Desktop KVM Switch



Replaced by: Belkin 4-Port Dual Head DVI Secure KVM Switch W/ Remote
Alternative options: Contact Us

The Belkin F1DH104D SOHO Dual Monitor Desktop KVM Switch lets you share up to two high-resolution monitors, keyboard, and mice with up to four computers, saving space on your desk and reducing equipment clutter. The sleek, new design of the Belkin F1DH104D incorporates a built-in USB 2.0 2-port hub with one of the ports conveniently located on the front. This setup is perfect for connecting an MP3 player, printer, scanner, or any of your USB devices to the F1DH104D KVM Switch while allowing your connected computers to access them. Sensitive push buttons on the front allow for easy switching, and independent audio-switching means you can play music from one computer while accessing files from another.

Belkin F1DH104D Features:

  • Able to support video resolutions of up to 2048 x 1536, so you can use the latest in video display technology for all your computers
  • With the firmware-upgrade feature, your investment in the KVM switch is further ensured and its lifetime value is maximized
  • Features a built-in Hi-Speed USB 2.0 hub, so you can share two USB peripheral devices, such as a printer, with all your computers
  • Two USB ports on the KVM switch
  • Allows you to share one set of speakers and one microphone with all your computers
  • Direct-access port selectors allow you to easily switch access from one computer to the next
  • Two LEDs on each button

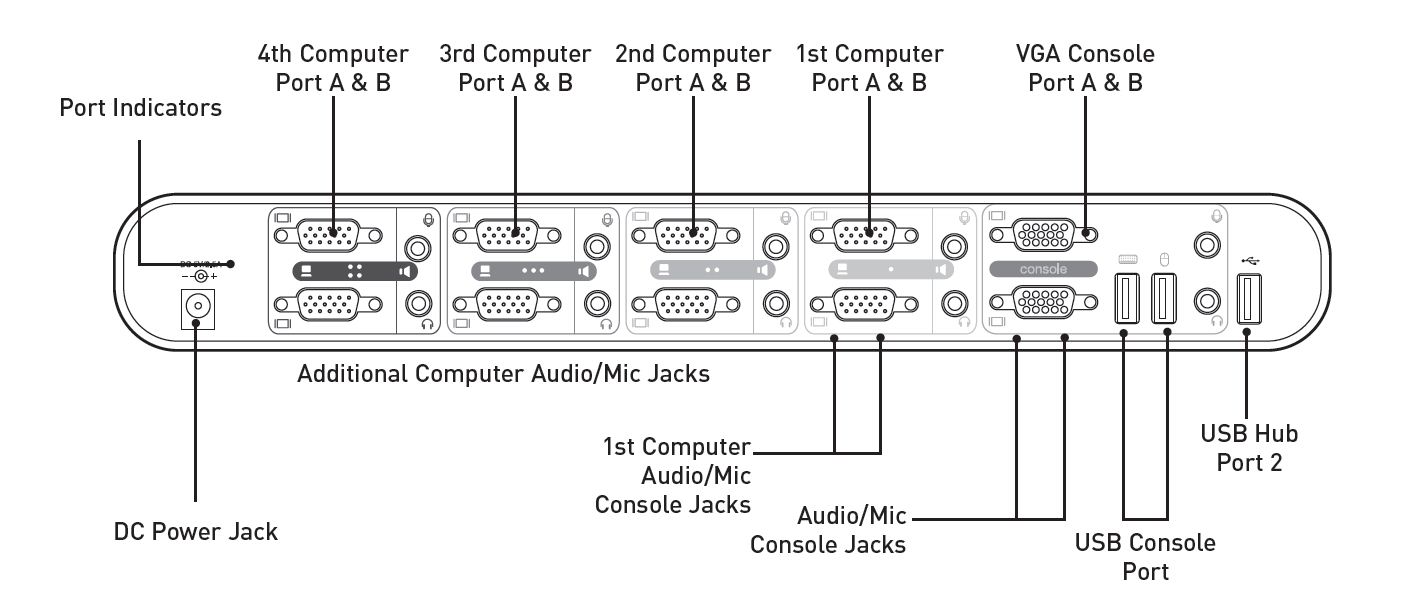

Belkin F1DH104D Backend
Belkin F1DH104D Back View
(F1DH104L depicted here)

Belkin F1DH104D Requirements:

  • Console
    • A DVI capable monitor
    • USB keyboard and mouse
    • Microphone and speakers (optional)
  • Computers
    • A DVI port
    • Type A USB port
    • Audio ports (optional)

Belkin F1DH104D Package Content:

  • 1 F1DH104D 2-port Dual Monitor SOHO KVM Switch with Audio
  • 4 6 ft. (1.8m) SOHO USB Cable Kits
  • 1 12V, 1.0A DC Power Adapter
  • 1 User Manual
  • 1 Quick Start Guide

Belkin F1DH104D Specifications:

Height 5.5 in. (13.97 cm.)
Width 5.5 in. (13.97 cm.)
Depth12.5 in. (31.75 cm.)
Weight1.75 lbs. (0.79 kg.)
Operating Temperature32-104 F (0-40 C)
Storage Temperature

-4-140 F (-20-60 C)


0-80% RH, Non-condensing

On Line/Selected4
Port SelectionFront Panel Switches; Hotkey
Video Resolution2560 x 1600,85Hz per Monitor
Power Consumption12V DC, 1A
Scan Interval5 seconds default (1-99 secs)
Supported Hardware
EmulationUSB keyboard/mouse
Keyboard, Mouse & Monitor2 x USB Type A
2 x DVI-D
Audio1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
Computer Connectors4 x DVI-D
4 x USB Type A
USB Hub2 x USB Type A
Approved Agency FCC Class B, ICES, C-Tick,
