Belkin F1DH104L SOHO KVM Switch, Dual VGA & USB



End-Of-Life (EOL)
For stock: Contact Us

With the Belkin F1DH104L 4-port SOHO KVM Switch, you can share your dual monitor, keyboard, and mouse with up to four USB computers. You can also connect one set of speakers and use them for all your computers.

The Belkin F1DH104L KVM Switch helps to increase efficiency and productivity at home or in the office by reducing desktop clutter while keeping access to all of your programs and files spread across multiple computers.

The Belkin F1DH104L Features:

  • Switches easily between Mac¨ computers and PCs
  • Front-panel buttons with NEW LED indicator lights allow you access audio and video content from multiple computers simultaneously
  • Requires no software for installation
  • Now includes a built-in USB 2.0 hub for connecting your peripherals
  • Included cables are color-coded to match the front buttons and back panel for trouble-free installation
  • Now supports hot-key functionality for optional switching
  • Available in 2- and 4-port models
  • Supports monitors with VGA connections
  • Supports USB keyboards and mice
  • Supports USB-based computers

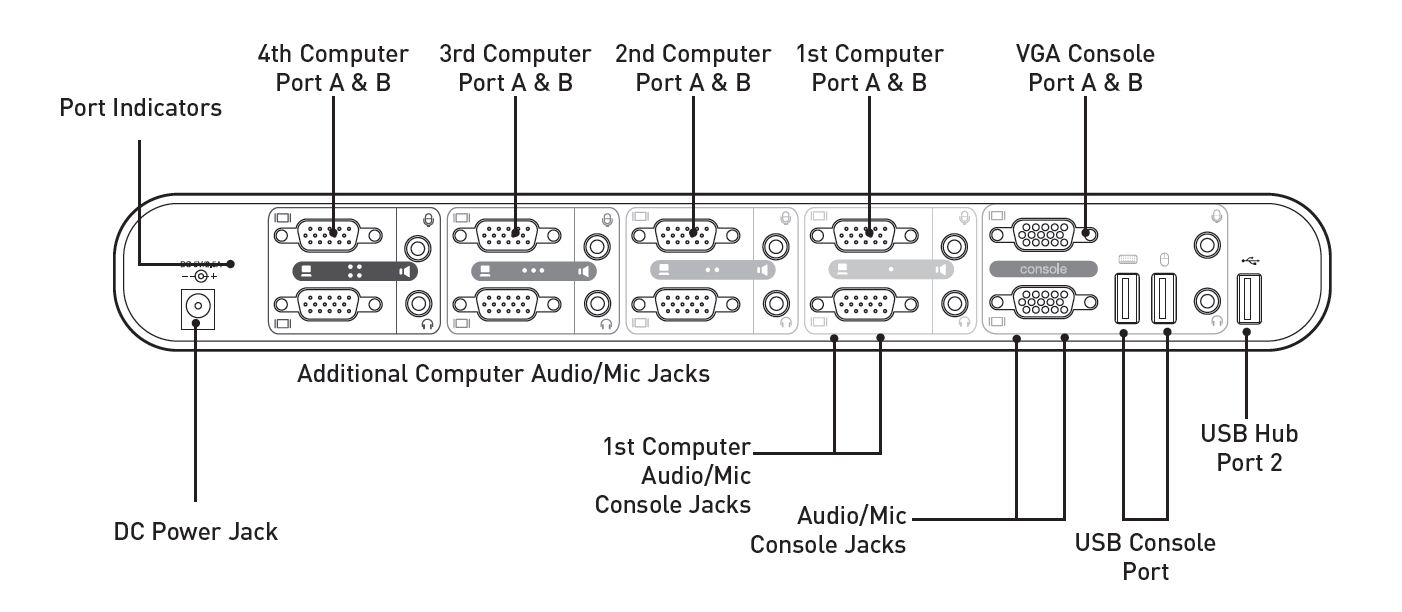

Belkin F1DH104L Backend
Belkin SOHO Dual VGA USB KVM Switch Back View
(F1DH104L depicted here)

The Belkin F1DH104L Requirements:

  • Console
    • A VGA, SVGA, or Multisync capable monitor
    • USB keyboard and mouse
    • Microphone and speakers (optional)
  • Computers
    • A VGA, SVGA or Multisync port
    • Type A USB port
    • Audio ports (optional)

The Belkin F1DH104L Package Content:

  • 1 F1DH104L 4-port OmniView SOHO KVM Switch
  • 4 6 ft. (1.8m) SOHO USB Cable Kits
  • 1 9V, 1.1A DC Power Adapter
  • 1 User Manual
  • 1 Quick Start Guide

The Belkin F1DH104L Specifications:

Height 5.5 in. (13.97 cm.)
Width 5.5 in. (13.97 cm.)
Depth12.7 in. (31.75 cm.)
Weight1.50 lbs. (0.68 kg.)
Operating Temperature32-104 F (0-40 C)
Storage Temperature

-4-140 F (-20-60 C)


0-80% RH, Non-condensing

On Line/Selected4
Port SelectionFront Panel Switches; Hotkey
Video Resolution2048 x 1536; 85Hz
Power ConsumptionDC 5V, 1.25W
Power Adapter (optional)1 x 9V, 1.1A DC Adapter
Scan Interval5 seconds default (1-99 secs)
Supported Hardware
EmulationUSB keyboard/mouse
Keyboard, Mouse & Monitor2 x USB Type A
2 x HDB-15
Audio1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
Computer Connectors4 x HDB-15
2 x USB Type A
4 x Mini Stereo Jack (Green)
4 x Mini Stereo Jack (Pink)
Power Jack1 x DC 5V Jack
USB Hub2 x USB Type A
Approved Agency RoHS
Question: Does this KVM support windows 7 or 8?
Answer: Thank you for your inquiry. According to the manufacturer, this switch will support Windows 2000, XP, Windows Vista and 2003; Mac OS* X and above; DOS; Linux; and Novell. No mention of Windows 7 or 8.1 support is listed.
