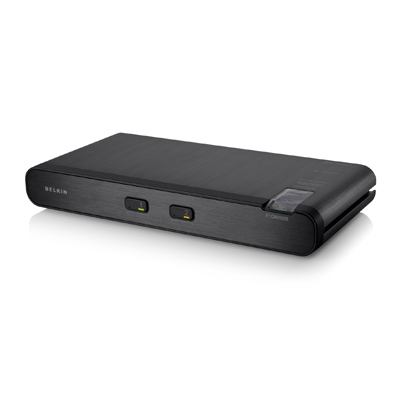

Belkin F1DN102B 2-port Advanced Secure DVI-I KVM Switch



For upgrade or replacement options: Contact Us

The Belkin F1DN102B Advanced Secure DVI-I KVM Switch offers superior security and data protection by providing true data path isolation between systems and networks. The F1DN102B is fully compatible with legacy and new government systems and exceeds NIAP security requirements. Using uni-directional data paths with optical diodes, the Belkin DVI-I KVM Switch prevents peripherals from being used to leak information from one computer system to another. Additional security is provided through the F1DN102B's end-to-end tamper-proof system that prevents physical tampering, and its intuitive user interface reduces user-switching errors by providing clear identification. Expect the best compatibility out-of-the-gate with a Secure Belkin KVM Switch solution that's designed and vigorously tested to work seamlessly with common systems and peripherals used by the defense and intelligence community.

Belkin F1DN102B Features:

  • Dedicated processors with emulators for every port: Isolated port paths for video, audio, peripherals, and smart card readers prevent data leaks between computers
  • Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
  • Display security: Protected display interface prevents data leakage via the monitor
  • Peripheral management: USB device detection prevents unauthorized peripheral usage
  • Anti-tampering: Internal electrical sensors render unit inoperable if opened
  • Multi-platform support: Supports cross-platform systems, including DVI-D, DVI-I, and VGA video interface technologies with Belkin Smart Cables
  • Uni-body chassis: Minimizes entry points and prevents physical tampering
  • Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
  • Customizable port coloring and naming: Facilitates port identification and reduces user switching errors
  • Fast switching: No keyboard or mouse delays when switching ports
  • Intelligent common access card (CAC) switching: Prevents unwanted system log-off while switching ports (available on certain models)
  • Easy mounting: Uses an integrated mounting track to allow under-desk or side-wall mounting, creating extra desk space
  • High retention connectors: Semi-locking USB ports prevent accidental disconnection
  • Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport
  • Multi-monitor support: Connects two monitors for each system (for certain models) to increase user productivity

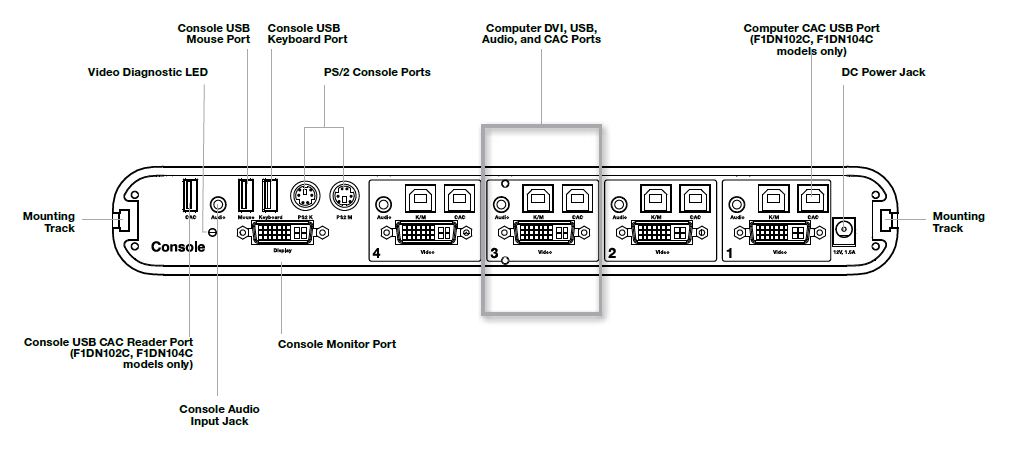

Belkin F1DN102B Backend
Belkin Secure KVM Switch Back View
(F1DN104B depicted here)

Belkin F1DN102B Requirements:

  • Console
    • A DVI-D capable monitor, single-link and dual-link
    • USB keyboard and mouse
    • Audio cable (optional)
  • Computers
    • A DVI-D port
    • Type A USB port
    • Audio port (optional)

Belkin F1DN102B Package Content:

  • 1 Belkin F1DN102B Secure DVI-I KVM Switch
  • 1 12V 1.5A DC Power Supply and Power Cord
  • 10 Interchangeable Port Color Chips (Multiple Colors)
  • 12 Port-Naming Labels
  • 1 User Manual

Belkin F1DN102B Specifications:

Height 6.4 in. (16.26 cm.)
Width 12.5 in. (31.75 cm.)
Depth4.32 in. (31.75 cm.)
Weight3.65 lbs. (1.66 kg.)
Operating Temperature32-104 F (0-40 C)
Storage Temperature

-4-140 F (-20-60 C)


0-80% RH, Non-condensing

On Line/Selected2
Port SelectionFront Panel Switches; Hotkey
Video Resolution2560 x 1600
Power Consumption12V DC, 1.5A
Scan Interval5 seconds default (1-99 secs)
Supported Hardware
EmulationUSB keyboard/mouse
Keyboard, Mouse & Monitor1 x USB Type A
1 x DVI-D (dual link)
2 x mini-DIN (PS/2)
Audio1 x Mini-phone 3.5mm
Computer Connectors2 x USB Type B
2 x DVI-I (dual link)
2 x Mini-phone 3.5mm
Approved Agency RoHS
