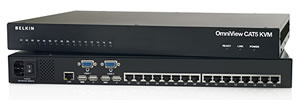

Belkin OmniView SMB CAT5 216 KVM Switch



Recommended replacement: Austin Hughes MU-1602
Alternative options: Contact Us

The Belkin F1DP216A is a OmniView CAT5 216 KVM Switch which enables two IT administrators to monitor and control their servers simultaneously. The KVM Switch provides reduced cable clutter and extended reach for up to 16 servers. The CAT5 KVM Switch extends the distance between the server and Switch to up to 100 feet. Server Interface Modules (SIMs) are available for PS/2, USB, and Legacy Sun servers. One SIM is required per server connected to the SMB CAT5 KVM Switch.

Belkin F1DP216A Features:

  • Up to 2 simultaneous local users
  • Out-of-band BIOS-level access
  • On-Screen Display (OSD)
  • CAT5 technology to support connection of up to 100 ft.
  • Keep-alive intelligence allows your servers to continue running in the event of power loss to the Switch or when replacing cabling
  • The Switch supports PS/2 and USB servers, including Windows®, UNIX®/Linux®, and Sun™ Scalable centralized management
  • The Switch supports video resolutions of up to 1600x1200@75Hz for both local consoles
  • Firmware-upgradeable

Belkin F1DP216A Specifications:

Width 17 in. (43.2 cm.)
Height 1.7 in. (4.3 cm.)
Depth 10.6 in. (26.9 cm.)
Weight 5.2 lbs. (2.3 kgs.)
Browser Support Internet Explorer 6.0 or higher
Humidity 80% non-condensing relative humidity
Local Console VGA, USB
Maximum Resolution 1600 x 1200 @ 75Hz
Network Interface RJ45 for Web-based Management Interface
Number of ports 16
Number of users supported 2 Local
Operating Temperature 32 to 104F (0 to 40C)
Power Supply 100-240 VAC; 50-60 Hz; 0.8A
Security Password Protection
Server Connections VGA, USB, PS/2, Legacy Sun
Storage Temperature -40 to 158F (-40 to 70C)
