Single-Mode DVI-D, Stereo Audio, & USB Keyboard-Mouse Fiber Extender up to 10km (6.2m)

FDX-3000-PROS

$1,999.00$1,557.66
Save $441.34
FREE Shipping on orders over $100

The SmartAVI FDX-3000-PRO is a single-mode fiber extender for DVI-D video, stereo audio, RS-232, and USB keyboard-mouse signals. Using its powerful fiber optic technology, the FDX-3000-PRO sends 1080p (1920x1080 @ 60Hz) Full HD audio-video and keyboard-mouse signals up to 10km (6.2m) away at lightning fast speeds without the risk of interference or interception.

The FDX-3000-PRO excels at transmitting and receiving HD DVI-D signals over long distances at incredible speeds. Outfitted with fiber optic cables popular in military and government operations, the FDX-3000-Pro is secure and resistant to outside interference. It can be used for KVM activities in businesses, corporations, industrial control rooms, hospitals, server hubs, banking facilities, and more. The FDX-3000-Pro also excels at securely sending confidential media and files across systems thousands of feet apart, ideal for communications, asset delivery, and remote access to sensitive digital materials.

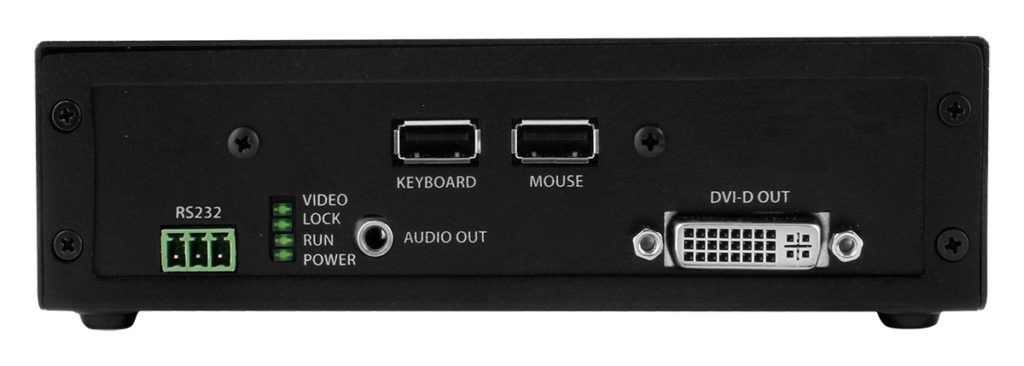

SmartAVI FDX-3000-PRO DVI Fiber Extender Back View
SmartAVI FDX-3000 DVI Fiber Extender Back View

SmartAVI FDX-3000-PRO Features:

  • Single-mode fiber optic extension up to 10km (6.2m)
  • Supports DVI-D
  • Supports video resolutions up to 1080p Full HD (1920x1080 @ 60Hz)
  • Supports USB 2.0 (keyboard-mouse only)
  • Supports stereo audio
  • Supports RS-232
  • Supports all computer operating systems
  • Compact, durable chassis

The FDX-3000-PROS Package Includes:

  • (1) FDX-TX3000P: DVI-D/Audio/RS-232/USB KM Transmitter
  • (1) FDX-RX3000P: DVI-D/Audio/RS-232/USB KM Receiver
  • (2) PS12VDC2A Power Supplies
  • (1) Quick Start & Installation Guide

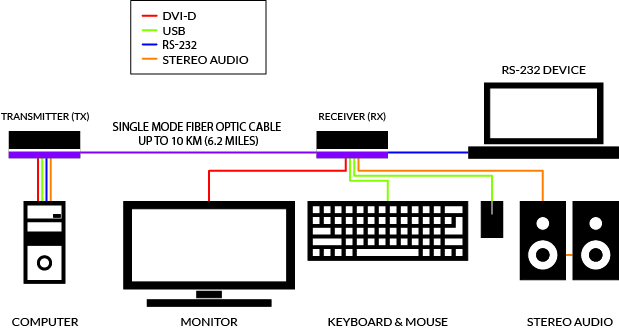

SmartAVI DVI Fiber Extender Application Diagram
SmartAVI FDX-3000-PRO DVI Fiber Extender Application Diagram

SmartAVI FDX-3000-PROS Specifications:

Mechanical
Dimensions (each)

6.25" W x 1.875" H x 5.0" D
(159 x 48 x 127 mm.)

Weight (TX & RX)
1.45 lbs (0.725 lbs per unit)
Video Data
Input Interface
DVI-D Female (Single-Link)
Resolution
Up to 1080p
(1920x1080 @ 60Hz)
Audio
Signal Type
Stereo Audio
Input/Output
 3.5mm stereo audio jack
RS-232
Signal Direction
Unidirectional
Max. Baud Rate
115200bps (self-adaptive)
Data Bits
8
USB
Sgnaling
USB Keyboard-Mouse Only
Input
(1) USB Type-B
Output
(2) USB Type A
Fiber Extender

LC Single-Mode Fiber
Up to 10km (6.2 miles)

ApprovalsUL, CE, ROHS Compliant
