SmartAVI Quad Monitor DVI-D Fiber Extender w/ Audio, RS232 & PS/2 (1400ft)



For upgrade or replacement options: Contact Us

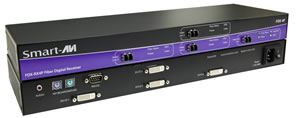

The SmartAVI FDX-M4P is a Multi-mode Quad DVI-D Extender, with Audio and PS/2 Keyboard and Mouse. It extends up to 1400 feet over 4 Fiber Optic Cables.

The FDX-M4P consists of a transmitter and receiver that extend four DVI-D outputs, with audio, PS/2 keyboard and mouse, and RS-232 control. For exceptional quality and security, fiber optic extension is the best solution. The FDX-M4P can go the distance with multi-mode fiber optic cabling with a reach of up to 1,400 feet.

The SmartAVI FDX-M4P is capable of supporting four DVI-D monitors, with PS/2 keyboard and mouse, stereo audio with serial (RS-232) control. The system includes a transmitter and receiver, which are connected by four fiber optic cables. The transmitter connects to the user's computer with the necessary cables, while the receiver connects to the remote interface devices up to 1,400 feet away.

SmartAVI FDX-M4P Features:

  • Quad channel DVI-D, audio and PS/2 keyboard and mouse with RS-232 control
  • Top Signal Quality over Multimode Fiber (up to 1,400 feet)
  • Video Resolutions up to 1920 x 1200 WUXGA at 60Hz
  • Customizable/Programmable DDC Table for Mac/PC
  • Supports all PS/2 Keyboards and Mice
  • Fiber Plug Type LC
  • Compatible With all Major KVM Switches
  • Supports Mac, PC, and Linux DVI
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Rack Mountable Solution
  • Plug-and-play

SmartAVI FDX-M4P Diagram
SmartAVI FDX-M4P Diagram

SmartAVI FDX-M4P Specifications:

Width 17.0 in. (43.2 cm.)
Depth 1.75 in. (4.4 cm.)
Height 7.0 in. (17.8 cm.)
Weight 8.0 lb. (3.6 kg.)
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 10K Ohm
Connector 3.5mm Stereo Mini Female
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (4) DVI-D 29-pin female
Output Interface (RX) (4) DVI-D 29-pin female
Resolution Up to 1920x1200 @ 60Hz
DDC Programmable Internal Table
5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Fiber Type Single, multi mode
Connector Type Duplex LC
Wavelength 1310nm/1550nm (Dual wavelength)
Data Rate 5 Gbps (2.5 Gbps per single wavelength)
Transmission Power -5 dB Min.
Receiver Sensitivity -21 dB Max.
Distance 500 m Max.
Power Internal 110-240 VAC
Operating Temperature 0-55C (32-131F)
Storage Temperature -20-85C (-4-185F)
Humidity Up to 95%
UPC / EAN Barcode icon
UPC 813280021364
EAN 0813280021364
