SmartAVI HDMI/RS232/IR Point to Point Fiber Extender



For upgrade or replacement options: Contact Us

The SmartAVI FX-HDPro extends HDMI, IR and RS-232 signals 1,200ft over fiber for home theater, digital signage and professional applications.

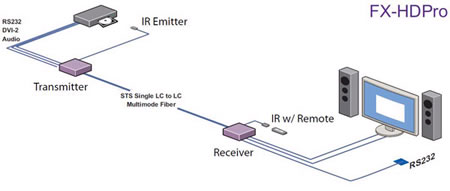

  SmartAVI FX-HDPRO Extender System Application Diagram

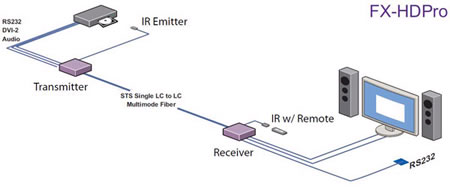

SmartAVI FX-HDPRO Extender System Application Diagram

SmartAVI FX-HDPro Features:

  • Transmit DVI-D 1920x1200 60Hz With Crisp, Perfect Image
  • Transmit Crystal-Clear Stereo Audio
  • Transmit HDMI Signals up to 1200 Feet Without HDCP Dropouts or Errors
  • Full IR and RS-232 Control
  • High-Definition Resolutions up to 1920 x 1200 Achieved Over Fishing Line-Thin "Invisible" Fiber Optics Cable Without Video or Audio Quality Loss
  • Perfect 1080p HDTV Resolution
  • Transparent IR Signal
  • Full Creative Control Over Arrangement/Setup of Home Theater Components and Professional Digital Signage Displays Without Restrictive, Bulky Cables
  • Unit Uses Extremely Cost-Effective Fiber Optics Cabling
  • LC Fiber Plug Type
  • Compatible With all Operating Systems
  • Quick and Easy Setup

SmartAVI FX-HDPro Specifications:

Height 8 in. (20.32 cm)
Width 6 in. (15.24 cm)
Depth 4 in. (10.6 cm)
Weight 10lbs
Resolution 1920x1200
Input Interface HDMI
Output Interface HDMI

3.5Phone Jack
Bandwidth 15KHz
Signal level 0dB unbalanced
Input Impedance 10K ohms
Output Impedance 100ohms

Question: what type of fiber does it use we are loking fro single mode
Answer: The FX-HDPRO is a multimode LC to LC fiber extender. Here is a good list of other available fiber extension solutions:

Question: does the unit come with a transmitter and a reciever
Answer: Yes, the FX-HDPROS comes with:
1 x FX-HDXPro Transmitter Unit HDX-PRO-TX
1 x FX-HDXPro Receiver Unit HDX-PRO-RX
2 x volt dc power supply 3A PS5VDC 3A-U

Question: can we use our own remote as a repeater we are using a hdpvr from multichoice south africa
Answer: If we understand your question correctly, yes, you should be able to use your own IR Remote, as the unit sends transparent IR signals. However, that does require the purchase of the optional IR EYE receiver and IR emitter.
