4-Port USB 2.0 Multimode Fiber Extender (1500 ft)

FX-USBS

$1,399.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

The FX-USB is a perfect solution for extending USB 2.0 signals from a computer in a remote location. It extends USB 2.0 to a remote location up to 1,500 feet away. It supports all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers. The FX-USB is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference. The FX-USB is also very secure because it's fiber optic signals cannot be easily tapped.

Applications

  • Corporate or Educational Presentations
  • Financial (Remote Servers/User Control)
  • Call Centers
  • Industrial (Long-Range Workstation Isolation)
  • Information Terminals/Kiosks
  • Airport Installations (Air Traffic Control/Passenger Information)
  • KVM Extension where Exceptional Quality of Signal is Crucial
  • Medical(Remote Operation Away from Sensitive/Magnetic Equipment)
  • Recording(for large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

Features

  • Top Signal Quality at Maximum Extension Over Multimode Fiber (1,500 ft.)
  • Fiber Plug Type LC
  • Extends USB 2.0 signals up to 1,500 feet from the computer
  • Fully compliant with USB 1.1 and 2.0 specification
  • Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
  • Supports all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers
  • Integrated Four-Port Hub in the receiver
  • Compatible with all operating systems
  • Fully transparent USB (does not use any emulation)
  • Plug and play

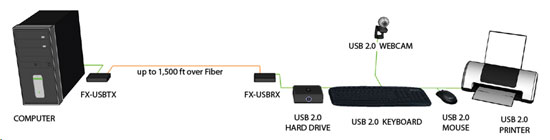

diagram

SmartAVI FX-USBS Specifications

Mechanical
Height 1 in. (2.54 cm)
Width 4 in. (10.16 cm.)
Depth 3 in. (7.62 cm.)
Input Interface(1) USB Type B
Output Interface(4) USB Type A
Fiber TypeSingle, multi mode
Data Rate5 Gbps (2.5 Gbps per single wavelength)
PowerExternal 100-240 VAC/5VDC4A @20W

UPC / EAN Barcode icon
UPC 813280017749
EAN 0813280017749
