8x8 DVI KVM Dual Link Matrix w/ Push Button Control, Audio and USB



For upgrade or replacement options: Contact Us

For pricing and additional information regarding the Gefen Pro Series, please contact us at 877-586-6654.

The GefenPRO GEF-DVIKVM-848DL-PB 8x8 DVIKVM Dual Link Matrix with Push Button Control provides a professional-grade KVM solution to route DVI, USB, and Audio from any eight computers to any eight Hi-Def workstations. Dual link resolutions up to 3840x2400 are supported. Audio can also be routed with the video using mini-stereo cables to provide full multimedia content for digital signage applications. The front panel display shows the current routing status and the front panel push buttons are used to manage local source routing. The USB input and outputs are used for USB 2.0 compliant devices and they support keyboard and mouse functionality as well as other USB 2.0 peripherals such as hard drives, USB cameras and more . Independent audio routing allows audio to be routed separately from the video. Each source can be controlled from any workstation by using the front panel push buttons, an included IR remote, the RS-232 interface, Telnet, IP control via the built-in Web interface, or the Gefen Keyboard Controller software. The Gefen Syner-G PC software provides easy firmware updates.

How It Works
Connect up to eight KVM source devices to the GefenPRO 8x8 DVI KVM Dual Link Matrix with Front Panel Push Button Control using the supplied DVI cables. Connect up to eight monitors to the DVI outputs. Connect the USB devices (keyboard, mouse device, etc.) to the USB input and output connectors. For audio, connect mini-stereo cables between each audio source and the audio inputs on the Matrix. Connect the mini-stereo cables between the audio outputs on the Matrix to the audio device. Plug in the power cord and apply power to the Matrix. The DVI, USB and Audio sources will be routed according to the current routing selection.

Note: This product only supports digital DVI (DVI-D). The product will route HDMI using adaptors, but the product is not HDCP The USB is USB 2.0 and is also backwards compatible with USB 1.1 The Audio support L/R 2CH analog audio formats

Gefen GEF-DVIKVM-848DL-PB Features:
  • Supports resolutions up to 1920 x 1200 and 3840 x 2400
  • Routes DVI, USB, and Audio sources simulateously
  • Advanced EDID management permits upload of custom internal or external EDID settings
  • Programmable routing presets
  • Output masking command
  • Front panel control buttons for local switching
  • Status LCD (shows routing status)
  • Serial RS-232 interface for remote control via a computer or control automation devices
  • IR Remote Control
  • Built-in IR Extender
  • IP Control
  • Grounding Pin
  • Internal Power Supply
  • Standby mode
  • Supports DDWG standards for DVI
  • Power ON / OFF switch
  • Rack-Mountable

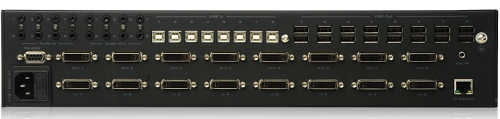

Gefen GEF-DVIKVM-848DL-PB Back View
Gefen GEF-DVIKVM-848DL-PB Back View

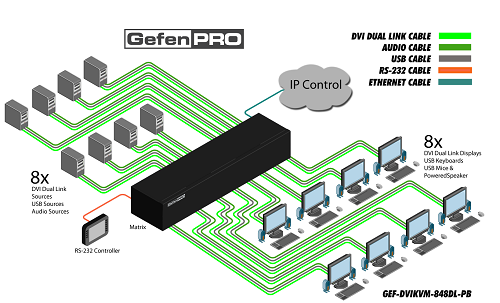

Gefen GEF-DVIKVM-848DL-PB Diagram

Gefen GEF-DVIKVM-848DL-PB Package Includes:
(1) GefenPRO 8x8 DVI KVM Dual Link Matrix with Front Panel Push Button Control
(8) 6 ft. DVI Dual Link Cables (M-M)
(8) 6 ft. USB Cables (A-B)
(8) 6 ft. Audio Cables (Mini-Stereo)
(1) IR Remote Control
(1) AC Power Cord
(1) User Manual

Gefen GEF-DVIKVM-848DL-PB Specifications:

Height 3.5 in. (8.89 cm.)
Width 19 in. (48.26 cm.)
Depth 12 in. (30.48 cm.)
Weight 28.1 lbs. (12.75 kg.)
Operating Temperature 32-104°F (0 - 40 °C)


Power Consumption 90 Watts (max.)
Power Supply Internal 110/220V AC (IEC Connector)
Supported Hardware
Maximum Pixel Clock 2 x 165 MHz
Input Video Signal 1.2 V p-p
DVI Input Connectors (8) DVI-I, female
DVI Output Connectors (8) DVI-I, female
USB Input Connectors (8) Type B
USB Output Connectors (16) Type A
Audio Input Connectors (8) 3.5 mm mini-stereo
DVI Input Connectors

(8) DVI-I, 29-pin, female

Audio Output Connectors (8) 3.5 mm mini-stereo
IR Extender connector 3.5 mm mini-stereo (for Gefen EXT-RMT-EXTIR)
RS-232 Interface DB-9, female
Ethernet Connector RJ-45, shielded

UPC / EAN Barcode icon
UPC 845344073927
EAN 0845344073927
