DisplayPort EDID Detective with EDID Control & 8K Support

Modern workstations and AV systems depend on clear communication between source and display; but when that link breaks down, productivity does too. Computers rely on EDID (Electronic Display Identification Data) to understand a display's capabilities, from its resolution to its refresh rate and audio format. When displays are powered off, switched away, or routed through complex systems, that EDID handshake can be lost; leaving you with blank screens, mismatched resolutions, and unnecessary frustration.

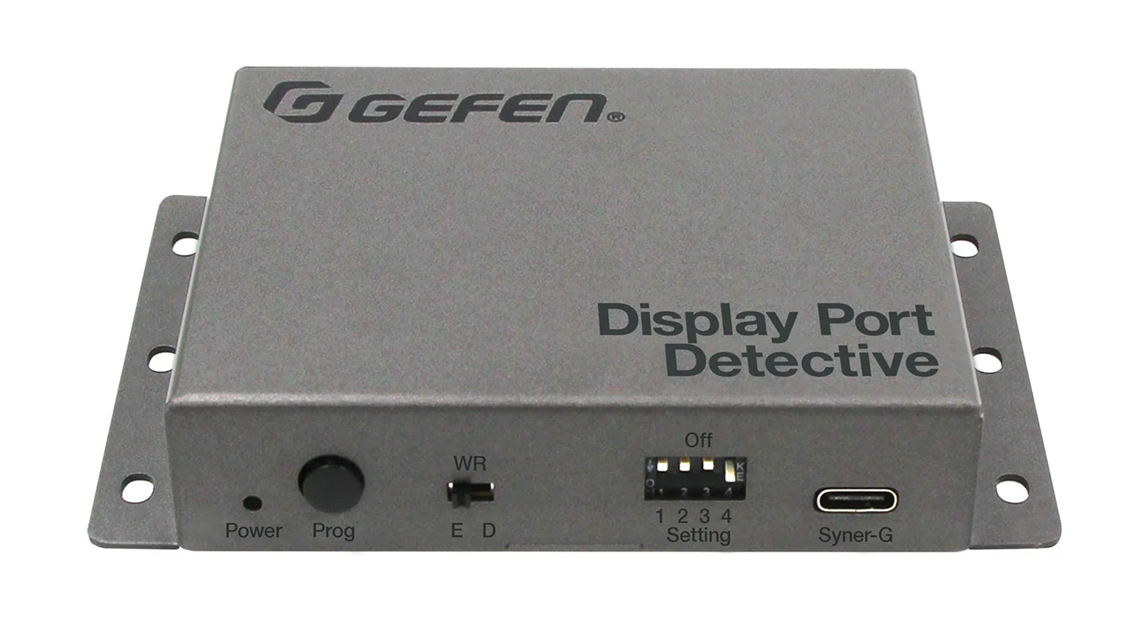

The Gefen GF-EDD-DP DisplayPort Detective keeps your system talking by capturing and storing the display's EDID information, then maintaining a stable, consistent connection even when the display isn't active. Once programmed, it becomes the silent middleman that never forgets; ensuring your sources always recognize the right display settings, regardless of how often you switch, power down, or reconfigure your setup.

The Gefen GF-EDD-DP is fully compliant with DisplayPort 1.4 and HDCP 2.3/2.2/1.x, and maintains reliable communication up to 8K@30Hz and 4K@60Hz with 32.4Gbps bandwidth (HBR3). Supports HDR10, HDR10+, Dolby Vision, and HLG video formats, plus immersive audio including Dolby Atmos and DTS:X. Features five factory-loaded Gefen EDID profiles and three user-programmable memory banks via USB-C for ultimate flexibility. Auxiliary channel re-clocking and active HPD/Link Training eliminate blank screens, mismatched resolutions, and signal loss.

Features of the Gefen GF-EDD-DP DisplayPort Detective

• Flexible Compatibility: Fully compliant with DisplayPort 1.4 and HDCP 2.3/2.2/1.x standards, ensuring reliable interoperability across modern displays and sources.
• Advanced EDID Management: Includes five factory-loaded Gefen EDID profiles and three user-programmable memory banks, allowing quick adaptation to unique system configurations or troubleshooting scenarios.
• Precision Signal Integrity: Auxiliary channel re-clocking and active HPD/Link Training maintain proper handshaking, even when the display is disconnected, eliminating intermittent signal loss or flicker.
• Convenient Control & Updates: The USB-C port enables easy EDID programming, firmware updates, and field service access, keeping the unit adaptable to evolving AV systems.
• Secure Configuration: A write-enable switch protects stored EDIDs from accidental overwriting, ensuring reliable, repeatable performance in critical workflows.

How the GFEDD-DP works

Setup (Plug-and-Play): Connect the DisplayPort Detective inline between your source device and display using standard DisplayPort cables. Power via included 5V/1A adapter or USB bus power during programming. The unit automatically captures and stores the connected display's EDID information upon first connection.​​

Operation (Automatic Maintenance): Once programmed, the Detective maintains continuous EDID communication with your source, even when the display is powered off, switched away, or disconnected. Your computer always "sees" the display configuration, eliminating resolution resets, window repositioning, or black screen delays when displays come back online.​​

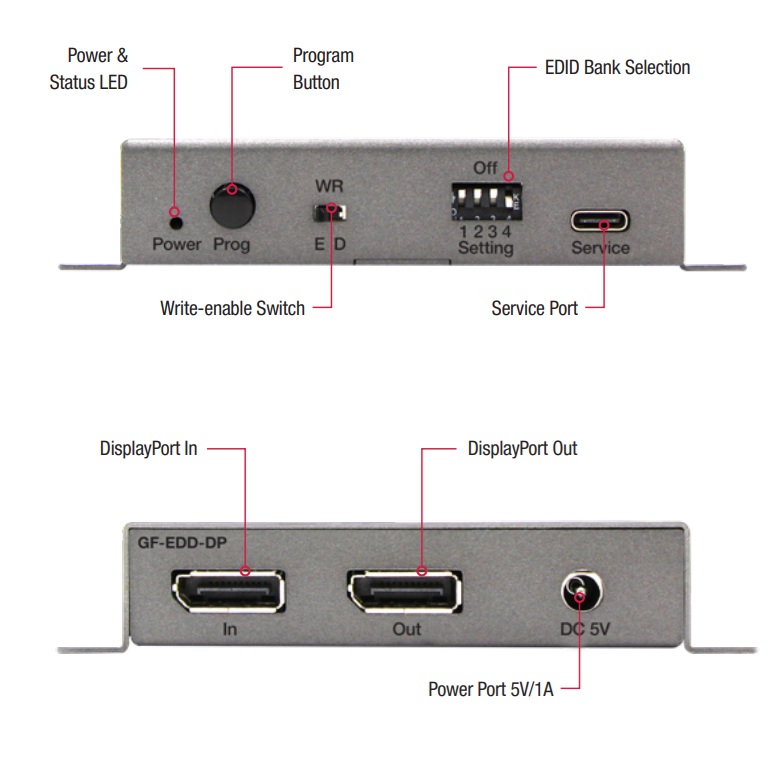

Customization (Advanced Control): Select from five factory EDID profiles using the 4-position DIP switch for instant compatibility with common display types. For custom requirements, connect via USB-C to program one of three user-programmable memory banks, allowing quick adaptation to unique system configurations. Enable the write-protect switch to lock configurations in production environments.

Gefen GF-EDD-DP Specifications

UPC 888814007718
EAN 0888814007718
