GefenToolBox DVIKVM Extra Long Range Extender - Black

GTB-DVIKVM-ELR-BLK

$1,199.00

Discontinued
Recommended replacement: Adder XD150
Alternative options: Contact Us

The Gefen ToolBox GTB-DVIKVM-ELR-BLK extends DVI, USB 2.0, RS-232, and Ethernet over two Cat-5 cables. The GefenToolBox DVIKVM ELR extends DVI, RS-232, and Ethernet up to 450 feet (140 meters) using a single Cat-5 cable. A separate Cat-5 cable is used to extend USB 2.0, up to 330 feet (100 meters). 480 Mbps data rates are supported for USB 2.0, in addition to backward-compatibility with USB 1.1.

The Receiver Unit allows the connections of up to two (2) USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems.

This GefenToolBox product uses Gefen ELR technology, allowing DVI, RS-232, and Ethernet to travel along the same Cat-5 cable, reducing the number of cables required. USB 2.0 is extended over the second Cat-5 cable, allowing USB to be extended at its full 480 Mbps bandwidth.

How It Works
Place the DVIKVM ELR Sender Unit next to the computer source. Use the included DVI cable to connect the source to the Sender Unit. Use the supplied USB cable to connect the USB port to the USB host (source) device. Connect the Receiver Unit to the monitor with a DVI cable. Connect the USB devices to the Receiver Unit. Use two Cat-5 cables, up to 330 feet (100 meters) long, to connect the Sender Unit to the Receiver Unit. Connect a serial cable from the RS-232 port on the Sender Unit to the RS-232 host device. Connect the RS-232 port on the Receiver Unit to the device used. The Ethernet port on both the Sender Unit and Receiver Unit are connected to standard network devices. Connect the included locking power supplies to the Sender and Receiver Units, and then connect both power cords to any available electrical outlets.

*Note:
This product does not support HDCP content with DVI sources.
This GefenToolBox DVI Extra Long Range Extender is also available in white (please see the Related Products link in the sidebar to the left).

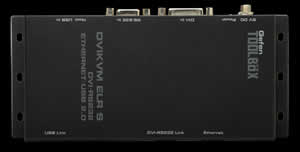

Gefen GTB-DVIKVM-ELR-BLK Backview
Gefen GTB-DVIKVM-ELR-BLK Backview

Features:

  • Extends DVI resolutions to 1920x1200 @ 60 Hz or 1080p up to 450 feet (140 meters)

  • Extends USB 2.0, RS-232, and Ethernet devices to 330 feet (100 meters)

  • Supports 480 Mbps using USB 2.0

  • Backward-compatible with USB 1.1 devices

  • EDID Management with Local and Pass-through modes

  • Locking Power Supplies for secure connections

  • Wall-mountable


Gefen GTB-DVIKVM-ELR-BLK Diagram
Gefen GTB-DVIKVM-ELR-BLK Diagram

Gefen GTB-DVIKVM-ELR-BLK Specifications:

Mechanical
Width 9.75 in. (24.8 cm.)
Height 1.25 in. (3.2 cm.)
Depth 3.4 in. (8.6 cm.)
Weight 3.0 lbs. (1.4 kgs.)
Maximum Pixel Clock 165 MHz
Signals
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
Connectors
DVI Connectors (Sender/Receiver) DVI-I-29-pin (digital only)
USB Connector (Sender Unit) (1) Type B
USB Connectors (Receiver Unit) (2) Type A
Link Connectors (Sender/Receiver) (2) Type A
Ethernet Connectors (Sender/Receiver) (2) RJ-45 (1 per unit)
RS-232 Connector (Sender) DB-9, female
RS-232 Connector (Receiver) DB-9, male
RS-232 Baud Rate 19,200 bps
Power
Power Supply (Sender/Receiver)  5V DC
Power Consumption 10W per unit (max.)
Operating Temperature 0-40C
