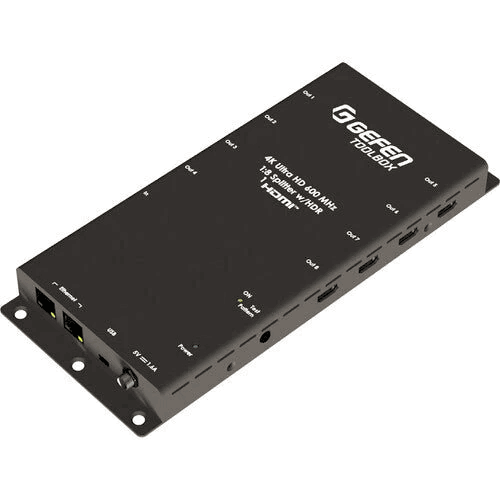

1x8 HDMI Splitter for 4K HDR and Audio

The Gefen GTB-UHD600-18S-RT is a powerful 1x8 HDMI splitter designed to route a full-bandwidth 4K Ultra HD 600 MHz source to up to eight 4K displays. Ideal for large-scale remote workstation access and digital signage applications, this splitter supports resolutions up to 4K DCI-Cinema (4096x2160 at 60 Hz) and HDR for stunning visual quality. With independent scalers for each output, it offers a flexible and scalable solution for professional AV and IT needs.

The Gefen GTB-UHD600-18S-RT at a Glance

• Simultaneously displays an Ultra Hi-Def source on up to eight Ultra HD displays
• Specifically designed to support multiple layers of splitting/cascading in large video distribution and signage applications, supporting hundreds of displays
• Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4 color space), 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4 color space), 1080p Full HD, and 1920x1200 WUXGA
• Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 4:4:4
• Supports 12-bit Deep Color at 1080p 4:4:4
• Supports HDR to SDR conversion
• Supports 4K to 1080P Auto-Downscale
• Supports built-in 1080P test pattern generator
• IP control via Telnet and UDP
• Supports Smart CEC control including IP to CEC bridge
• 3DTV pass-through
• Lip Sync pass-through
• EDID Management and Audio Mode selectors for rapid integration of source and displays
• Supports LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
• Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
• Gefen Syner-G™ software's Discovery and Show-Me features simplify initial IP configuration
• Advanced EDID Management via Virtual Serial over USB, Telnet or UDP
• In-field firmware update via USB or via web interface
• Low-profile, surface-mountable enclosure

How It Works:
The Gefen GTB-UHD600-18S-RT HDMI splitter operates by taking a single 4K source and distributing it to eight Ultra HD displays simultaneously. First, connect your source device, such as a Blu-ray player or computer, to the HDMI input. Then, connect up to eight displays to the HDMI outputs. The splitter automatically manages the signal, ensuring each display receives a high-quality image. With independent scalers for each output, it can even downscale the signal for 1080p displays, making it a versatile solution for any setup.

Gefen GTB-UHD600-18S-RT Features and Benefits:

High-Resolution Video: Supports resolutions up to 4K DCI-Cinema (4096x2160 at 60 Hz, 4:4:4 color space), 4K Ultra HD (3860x2160 at 60Hz, 4:4:4 color space), 1080p Full HD, and 1920x1200 (WUXGA), ensuring crystal-clear video quality.

HDR Support: Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4 for a wider range of colors and greater contrast.

Seamless Integration: Features IP control via Telnet and UDP, along with Smart CEC control, for easy integration into any professional AV system.

Audio Support: Supports LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ for immersive sound.

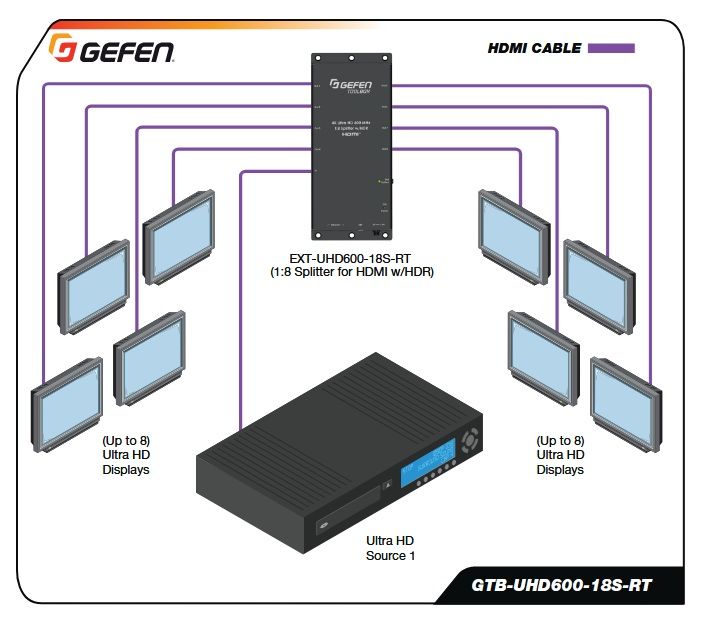

Gefen GTB-UHD600-18S-RT 1x8 HDMI Video Splitter Diagram

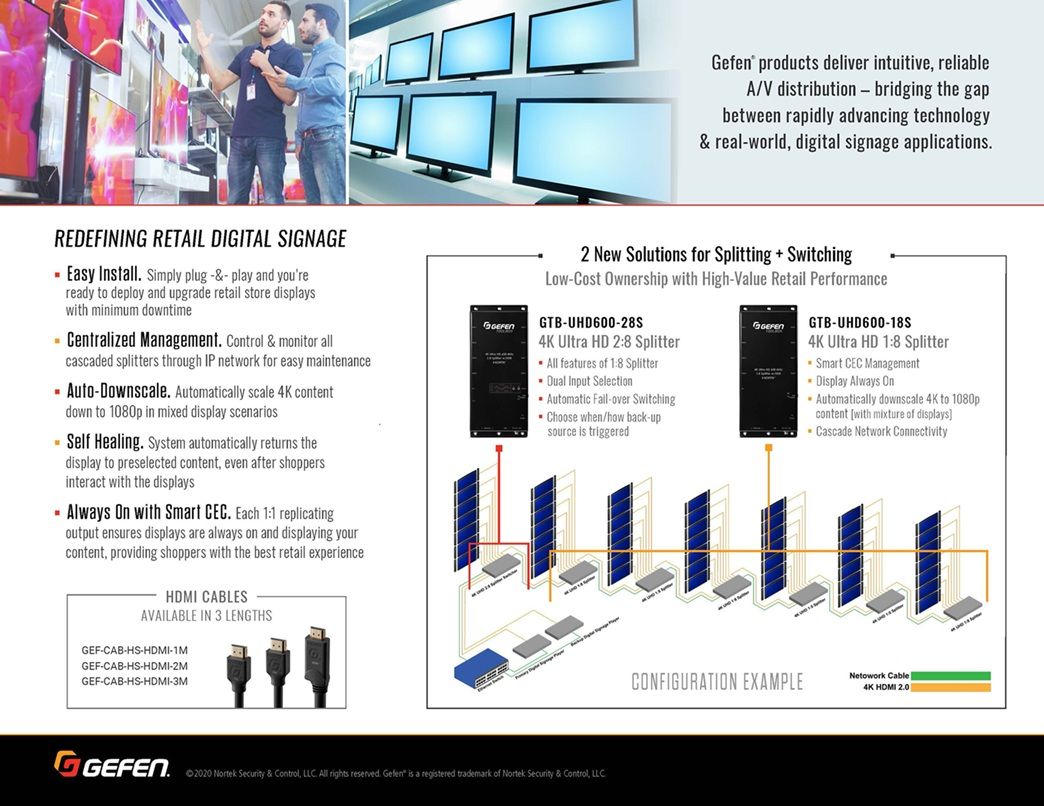

• Easy Install. Simply plug -&- play and you're ready to deploy and upgrade retail store displays with minimum downtime
• Centralized Management. Control & monitor all cascaded splitters through IP network for easy maintenance
• Auto-Downscale. Automatically scale 4K content down to 1080p in mixed display scenarios
• Self Healing. System automatically returns the display to preselected content, even after shoppers interact with the displays
• Always On with Smart CEC. Each 1:1 replicating output ensures displays are always on and displaying your content, providing shoppers with the best retail experience

Gefen GTB-UHD600-18S-RT Package Contents:

• (1) 4K Ultra HD 600 MHz 1:8 Splitter w/HDR and Scaling
• (1) 5v/2.6A Power Supply (EXT-PS526AIP-LP-6)
• (1) Quick-Start Guide)

Gefen GTB-UHD600-18S-RT Specifications:

UPC 888814007428
EAN 0 888814007428
