GefenTV HDMI to HDMI Plus Audio Converter
GTV-HDMI-2-HDMIAUD
Save $107.30
The GefenTV GTV-HDMI-2-HDMIAUD is a HDMI to HDMI Audio Converter which takes a Hi-Def source using HDMI and outputs it to an HDTV display using HDMI and, in addition, up to 8 channels of LPCM audio output through eight RCA connectors. Bitstream is output to an Optical digital connector. Additional features include switchable audio selections between auto mode and manual mode affording further selection between two-channel audio only, multi-channel bitstream and 7.1 LPCM audio.
How this Gefen Audio Converter works:
Connect a Hi-Def source to the GefenTV HDMI to HDMI Audio Converter's input with the included HDMI cable. Connect another HDMI cable from the output of the Converter to an HDTV display. Connect an optical audio cable from the Converter to an external amplifier. Alternatively connect an amplifier to the 8 channel RCA connectors. Finally connect the 5V DC power supply to the locking connector and to an electric outlet. Refer to the manual for further explanation of the switches that are on the front panel
Note: Complies with HDMI 1.3, DVI 1.1, and HDCP 1.1
Gefen GTV-HDMI-2-HDMIAUD Back View
Gefen GTV-HDMI-2-HDMIAUD Features:
- Resolution Supported up to 1080p Full HD
- Switchable selection between Auto mode and Manual mode
- HDMI v1.3 supported features:
- Deep Color, Dolby TrueHD, DTS-HD Master Audio (through the HDMI connector only), Lip Sync, CEC pass-through
- Bitstream Audio via Optical Toslink and LPCM 7.1 via 8 RCA connectors
- Locking power supply
Package Includes:
- (1) GefenTV HDMI to HDMI Plus Audio Converter
- (1) 6 ft HDMI cable - black, non-locking type
- (1) 5V DC Locking Power Supply
- (1) User's Manual

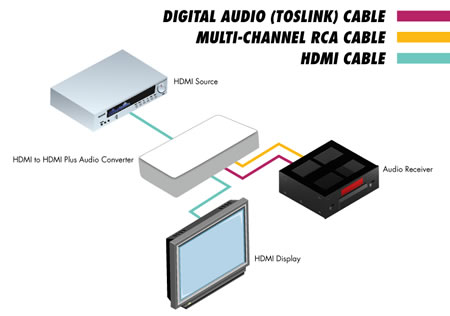

Gefen HDMI to HDMI Audio Converter Application Diagram
Gefen GTV-HDMI-2-HDMIAUD Specifications:
| Mechanical | |
| Height | 1 in. (25.4 mm.) |
| Width | 10.25 in. (260.35 mm.) |
| Depth | 4.25 in. (107.95 mm.) |
| Shipping Weight | 4 lbs. (1.8 kg.) |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Power | |
| Suppy | 5V / 2.6A DC |
| Consumption | 13 Watts (max) |
| Digital Video Amplifier Bandwidth | 225 MHz |
| Maximum Resolutions | 1080p, 1920 x 1200 |
| HDMI | |
| HDMI Input | 19-pin HDMI connector |
| HDMI Output | 19-pin HDMI connector |
| Audio Outputs | |
| Digital Audio Output | TOSLINK |
| Analog Audio Outputs | 8 x RCA |
UPC 845344056111
EAN 0845344056111
Answer: Thank you for your inquiry. Our Gefen contact just tested this unit for us and they have confirmed it will support 96khz/24bit through the analog outputs.
