Gefen TV High-Definition Scaler



Replaced by: Gefen EXT-MFP
Alternative options: Contact Us

The Gefen GTV-HIDEFS is a TV High-Definition Scaler which allows you to upscale and switch your standard definition or high definition component sources to resolutions up to 1080p. Anything from set-top boxes, DVD players to the next generation of gaming consoles including the Xbox 360 and PS3 can be plugged into the GefenTV High-Definition Scaler.

The GefenTV High-Definition Scaler supports two component sources and one DVI source all with digital TOSlink and analog audio inputs. The analog audio inputs will be outputted as analog audio and the digital TOSlink audio inputs will be outputted as digital TOSlink audio.  Easy to use on-screen menus accessible through the IR remote control allow for effortless setup and image adjustment to accommodate different viewing modes and screen sizes.

Note: The GefenTV High-Definition Scaler will input and output VGA using the DVI to DVI & VGA Adapter (sold separately).

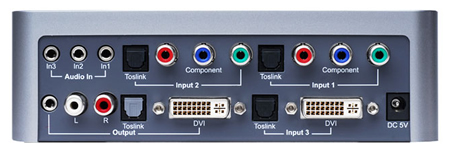

Gefen GTV-HIDEFS Back View
Gefen GTV-HIDEFS Back View

Gefen GTV-HIDEFS Features:

  • Both digital and analog inputs are format converted and pixel re-scaled through the HD Mate Scaler. It outputs a large range of formats and resolutions that will easily match the native resolution/ format of your display to ensure highest picture quality.
  • DVI input: Operates up to 165Mhz (Up to UXGA @60Hz)
  • Supports digital HD output up to 1080p.
  • Integrated 8-bit triple-ADC/PLL.
  • Dual high quality scaling engines.
  • Dual 3-D motion video adaptive de-interlaces with smooth low-angle edge.
  • Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
  • High performance frame rate conversion engine.
  • The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color, Intensified contrast and details, Vivid skin tone, Sharp edge, Accurate and independent color control
  • 3D noise reduction on analog inputs only.
  • Operates through on-screen OSD menu control and remote control.
  • DVI-I input and output accepts both analog and digital video
  • Aspect Ratio Control
  • Digital Audio Delay to match audio/video timing
  • Less then one frame delay allowing for gaming

Package Includes:

  • GefenTV High-Definition Scaler
  • (1) 6 ft DVI cable (M-M)
  • (1) 5V Power Supply
  • IR Remote control
  • User's Manual

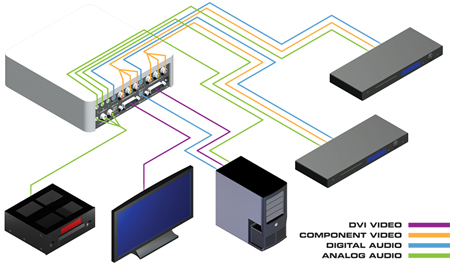

Gefen TV High-Definition Scaler Wiring Diagram
Gefen TV High-Definition Scaler Wiring Diagram

Gefen GTV-HIDEFS Specifications:

Height 2.125 in. (5.398 cm.)
Width 6.875 in. (17.463 cm.)
Depth 6.875 in. (17.463 cm.)
Shipping Weight 6 lbs. (2.72 kg.)
Power Supply 5V DC
Power Consumption 12 watts (max)
Input Signals
Input DDC Signal 5 volts p-p (TTL)
Input Video Signal 1.2 volts p-p
Digital Video Amplifier Bandwidth 165 MHz
Component Video Bandwidth 350 Mhz
Input/Output DVI Connector DVI-I (29 pin) female
Component Video Connector 3 RCA
Digital Audio Connector optical TOSlink and coax SPDIF
Analog Audio Connector mini-phone stereo 3.5mm
Single Link Range 1080p/1920 x 1200
Question: There is a red light showing behind the Optical Output area on the back of the above product we have. What does this mean? We are having trouble with losing the camera feed to our Mediasite that the above product is attached to. We have three more of the above product, there is no red light behind the Optical Output area of these and we are having no issues with losing the camera feed to these Media sites. Thank you.
Answer: Thank you for your inquiry,

Optical is laser (light) therefore it's normal for the light to show through the cracks or seams of the optical housing.

If you are getting dropped signals, please first check and try to replace the cables. If the problem persists, the units have reached end-of-life (they are roughly 7+ years old). The replacement for the Gefen GTV-HIDEFS is the Gefen EXT-MFP.

Please let us know if there is anything else we can help you with!
