GefenTV Wireless VGA LR (Long Range)



Recommended replacement: Wireless KVM | Wireless Extenders
Alternative options: Contact Us

The Gefen GTV-WVGA-LR is a Wireless VGA Extender LR that allows a VGA display or projector to be conveniently located up to 100 feet away from the source. The Wireless VGA Extender LR features signal transmission through walls at resolutions of up to 1280x1024, using industry-proven 2.4GHz 802.11b/g/n Wireless network technology. The Extender can be operated on any one of 4 channels to minimize interference.

How It Works
This product is a plug-and-play solution. No special configuration is necessary. The Wireless VGA Extender LR system consists of a Sender and a Receiver. The Sender is connected to the VGA source with a VGA cable. The Receiver is connected to the display with a VGA cable. 12V external power supplies are connected to the Sender and the Receiver.

*Note: Supported A/V input sources also include Component, S-Video and Composite Video. A/V sources can be individually selected by pressing the Source Selector button on the front panel of either the Sender unit or the Receiver unit. The current wireless channel can be selected in the same way with the Channel Selector button.

Supported resolutions are as follows:

A/V Input Formats:
2. S-Video : NTSC / PAL / SECAM
3. Y/Pb/Pr : 480i/p , 576i/p , 720p (50/60Hz) , 1080i/p (50/60Hz).
4. VGA : 640x480, 800X600 , 1024X768 , 1280X768 ,1280X960 , 1280X1024

Output Formats & Frequencies:
1. Y/Pb/Pr : 480p (60Hz), 576p (50Hz), 720p (60Hz)
2. VGA : 640x480 (60Hz), 800X600 (60Hz), 1024X768 (60Hz), 1280X768 (60Hz), 1280X1024 (60Hz)

Resolutions having 1024 vertical pixels or 720p resolution and higher will have half the usual frame rate.

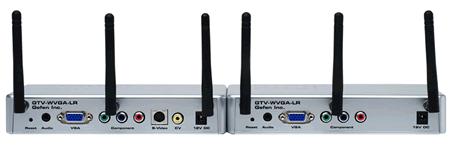

Gefen GTV-WVGA-LR Backview

Gefen GTV-WVGA-LR Backview

Gefen GTV-WVGA-LR Features:

  • Wireless extension of VGA up to 100 feet
  • Resolutions of up to 1080i/p@60 Hz (Component) and 1280x1024 (VGA) are supported
  • Video Formats Supported: VGA @ 1280x1024 (max), Component (720p, 1080i max), S-Video, Composite
  • Switch between four audio/video sources from the senders location
  • Plug-and-Play installation with no special configuration required
  • 4 wireless channels for resistance to interference
  • L/R Analog Audio supported

Package Includes:

  • (1) GTV-WVGA-LR Wireless VGA Sender
  • (1) GTV-WVGA-LR Wireless VGA Receiver
  • (2) 12V / 1A Power Supplies
  • (1) 6 foot VGA cable (M-M)
  • (1) User's Manual

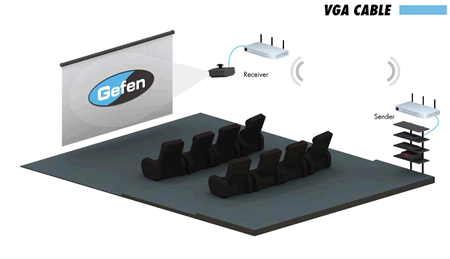

Gefen GTV-WVGA-LR Application Diagram

Gefen GTV-WVGA-LR Application Diagram

Gefen GTV-WVGA-LR Specifications:

Width 4.17 in. (10.6 cm.)
Height 0.9 in. (2.3 cm.)
Depth 7.02 in. (17.8 cm.)
Operating Temperature 0-40 C ambient temperature
Operating Humidity 90% maximum (non-condensing)
Video Inputs
Composite & S-Video NTSC / PAL / SECAM
Y/Pb/Pr 480i/p , 576i/p , 720p (50/60Hz) , 1080i/p (50/60Hz).
VGA 640x480, 800X600 , 1024X768 , 1280X768 ,1280X960, 1280X1024
Video Outputs
Y/Pb/Pr 480p (60Hz), 576p (50Hz), 720p (60Hz)
VGA 640x480 , 800X600 , 1024X768 ,1280X768 ,1280X1024
Wireless Standard IEEE 802.11b/g/n
Switchable 802.11b/g/n Channels: 3, 6, 9, 11
Antenna Type External Dipole antenna 2dBi
PCM Encoding 48KHz 16-bit sampling
Power Supply 2 x 12V @ 1A each
Question: Is it possible to get more than one receiver and send to multiple projectors? If so, please give me pricing.
Answer: Thank you for your Patience. We have just heard back from Gefen and it appears that this particular product is discontinued and no longer available. Additionally, they did not specify a replacement product.
