SmartAVI HDC-400 CAT-5

HDC-400S

$399.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

SmartAVI's HDC-400 allows for the extension and distribution of high-definition video, stereo audio, infrared, and RS-232 signals to as many as four separate locations using inexpensive Cat5 systems family cabling as far as 1,000 feet away.

Using RS-232 communication, users can send commands to single or multiple devices that are connected to the HDC-400, including volume adjustment, channel selection or power the display panel on/off remotely. This solution is perfect for venues such as sports bars, retail shops, command posts, or even educational/corporate training facilities where multiple screens may be necessary for adequate viewing of high-definition content.

Applications

  • Sports Bars/Lounges
  • Retail Locations
  • Educational/Corporate Training
  • Theme Park Design
  • Resort Check-In/Concierge Areas
  • Command Posts/Centers

Features

  • Uses Easy-to-Install, Inexpensive Cat5/5e/6/7/8 Cabling
  • Each Output Extends up to 1,000 Feet (300 m)
  • Supports High Resolution Video up to 1900 x 1200
  • HDTV Compatible (720p, 1080i, 1080p)
  • 300 MHz Bandwidth
  • Broadcasts High-Resolution Component Video, Stereo Audio, RS-232 or IR Signals from one Source to up to Four Locations
  • Compatible with Y Pr Pb and RGB
  • Compatible with Line Level Stereo Audio Signals
  • High Ground Loop Immunity
  • Built-In Power Surge and Transient Protection
  • Designated Trimmer in Remote Unit to Compensate for Cable Length
  • Compact Metal Case Enclosure
  • External Power Supply
  • RS-232 Communication Support to Single or Multiple Displays
  • IR Command to Single or Multiple Displays
  • RS-232 Communication Support to Single/Multiple Displays
  • Local Video and Audio in Transmitter

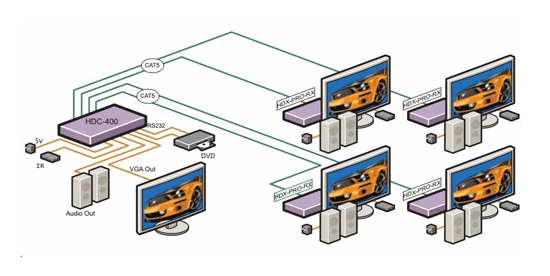

hdc diagram

SmartAVI HDC-400 Specifications

Max Distance1,000 feet
FormatRGBHV, RGsB, YUV, Y/C, CVBS
1-Volt p-p75 Ohm
ResolutionUp to 1900 x 1200
Video Ampllifier Bandwidth300MHZ
Audio Frequency Response20Hz to 20 kHz
Supported Resolutions480p, 720p, 1080i, 1080p
Connectots Cable3 Female RCAS for Video and 2 Fremale RCAS for Audio CAT5, CAT5E, CAT6, CAT6E
Power5VDX @ 2A
Warranty2 Years
UPC / EAN Barcode icon
UPC 813280021463
EAN 0813280021463
