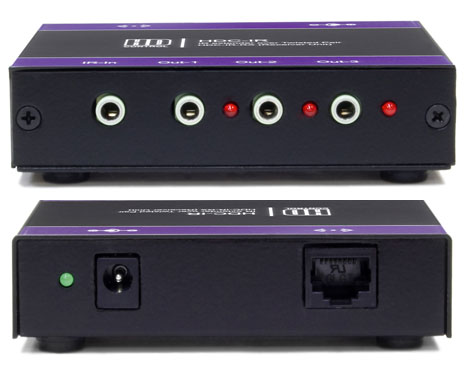

IR CAT5 Receiver.
HDC-IR-RXS
Save $33.12

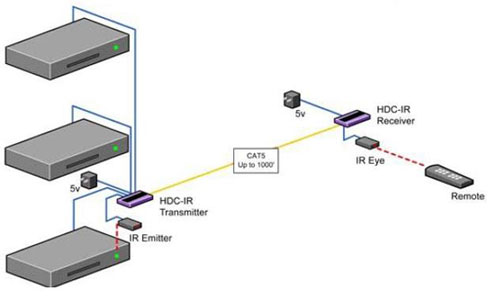

The HDC-IR range of products allow the extension of Infra Red control signals using single CAT5 UTp (category 5, unshielded twisted pair) cable. The HDC-IR is the first product for this application.
*Receiver Only.
Applications
- Hotels
- Cable TV remote control
- Control rooms
- Remote On-Digital set-top control
- Sky box control extension
- Dealer rooms
- Point of Sale
- Data Broadcasting
Features
- Uses easy to install, inexpensive CAT5
- Output reaches up to 1000 feet (300m)
- Sends IR and Power signals over CAT5
- High ground loop immunity
- Video cable compensation (automatic)
- Sends Composite Video Stereo Audio, IR and Power signals over CAT5
- Compatible with line level stereo audio signals
- High ground loop immunity
- Built-in lightning, power surge and transient protection
- Remote units come with buffered outputs
- Compact enclosure
- Optional power supply for remote unit
- Fully compliant with standard modulated IR and the latest IRDA
- Fully transparent path for all products and data transfers
- Bi-directional IR
- Supports any IR Remote Control
SmartAVI HDC-IR Receiver Specifications
| Mechanical | |
| Height | 1.0 in. (2.54 cm) |
| Width | 2.5 in. (6.35 cm.) |
| Depth | 2.5 in. (6.35 cm.) |
| BIR Frequency Range | 100 MHz |
| Capture Distance | 75 Ohm |
| Cable Connector | RCA, Female |
| IR Signal Indicator | 75 Ohm |
| IR Frequency Range | Stereo Audio |
| Cable Connector | 10K Ohm |
| IR Signal Indicator | RCA |
| Power | 12VDC 1A dongle power up to 250 ft |
| Cable Link | CAT5 568A or 568B |
UPC 813280017756
EAN 0813280017756
