SmartAVI Component or UXGA/Audio + RS-232/IR 8x8 Matrix Video Router Switch

HDC-MXS

$3,999.00

Discontinued
For upgrade or replacement options: Contact Us

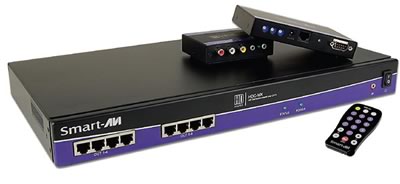

The SmartAVI HDC-MXS HDTV Router combines all the functions of an audio matrix, video matrix, IR matrix and a full RS-232 matrix into one sleek, cost-effective compact design. This gives you absolute control over all of your home entertainment components, how your system is set up and allows you to extend each of the component signals up to 1,699 feet!

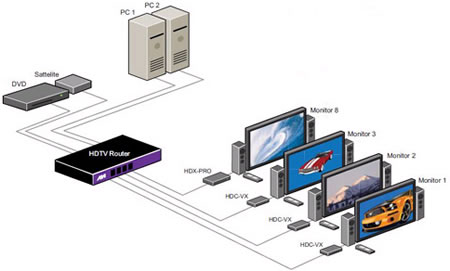

SmartAVI HDC-MXS HDTV Router Application Diagram

SmartAVI HDC-MXS HDTV Router Application Diagram


SmartAVI HDC-MXS Features:

  • Routes additional audio signals independently
  • Integrated IR and RS-232 router for each station
  • Optimal high-quality audio switching
  • Optimal high-quality video switching
  • Supports resolutions up to 1920 x 1200
  • Full duplex infrared and RS-232 control for matrix and connected devices
  • Completely transparent IR function supports all frequencies between 20 and 100Khz
  • PC Windows¨ control software
  • Cable compensation up to 1,699 feet
  • Compact metal housing for receivers
  • Can distribute multiple video signals (RGB, YUV, RGBS, HDTV)
  • HD Compatible(480p, 720p, 1080, 1080p

SmartAVI HDC-MXS Specifications:

Mechanical
Height 3.4in (8.6cm)
Width 19in (48.3cm)
Depth 17.7in (45cm)
Weight 9lbs
Audio Signal 15KHz 0dB unbalanced 100 Ohms
impedance
Power Voltage 90-230V IEC 1A A/S 56/60 Hz
Video Resolution Bandwidth 400 MHz
Input Signal level 1 Volt p-pk into 75R
Output Impedance 100 Ohms
Input Impedance 75 Ohms
Connector 8 x HD15 socket female
Format VGA/SVGA/XGA/RGBHV//RGsB/CVGS/YC/YUV/RGBS/HDTV
Syncs TTL5VDC
Bandwidth Horizontal Sync up to 85KHz
Control IR 3.5mm connector with 38khz
DB9 female RS-232 or RS-422 @ 9600bps

Connectors RCA or 3.5 Stereo Jack
RS-232 8 x RS-232 DB9 Female, TX, RX, GND
Infrared 8 x IR 3.5mm Jack to IR emitter
Front Panel 8 x RJ45 with video, audio and data modulated within single UTP
