SmartAVI Composite Video & Audio Extender
HDC-VXS
The SmartAVI HDC-VX allows the extension of Composite Video, Stereo Audio and InfraRed control signals via a single Category twisted pair cable using a unique method of transparent data transfer.
HDC-VX Features:
- Uses easy to install, inexpensive CAT5/5e/6/7/8.
- Output reaches up to 1000 feet (300m).
- Supports PAL, NTSC and SECAM.
- Video 100 MHz Bandwidth.
- Video cable compensation (automatic).
- Sends Composite Video Stereo Audio, IR and Power signals over CAT5.
- Compatible with line level stereo audio signals.
- High ground loop immunity.
- Built-in lightning, power surge and transient protection.
- Remote units come with buffered outputs.
- Compact enclosure.
- Optional power supply for remote unit.
- Fully transparent path for all protocols and data transfers.

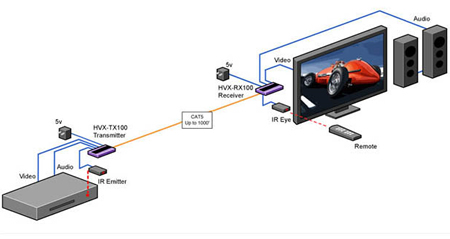

SmartAVI HDC-VX Application Diagram
SmartAVI HDC-VX Specifications:
| Mechanical | |
| Height | 0.88 in. (22.2 mm.) |
| Width | 3.75 in. (95.3 mm.) |
| Depth | 2.75 in. (69.9 mm.) |
| Weight | 0.25 lb. (0.9 kg.) |
| Range | |
| AV+IR over CAT5 UTP | 1000 ft. (300 m.) |
| Remote Control Range | 25 ft. (8 m.) |
| Video Input | |
| Signal type | NTSC/PAL/SECAM Composite Video 1V p-p |
| Bandwidth | 100 MHz |
| Impedance | 75 Ohm |
| Connector | RCA, Female |
| Audio Input | |
| Singal Type | Stereo Audio |
| Bandwidth | 20 KHz, 0 dB |
| Impedance | 10K Ohm |
| Connector | RCA |
| Video Output | |
| Signal Type | NTSC/PAL/SECAM Composite Video |
| Bandwidth | 100 MHz |
| Impedance | 75 Ohm |
| Connector | RCA, Female |
| Audio Output | |
| Signal Type | Stereo Audio |
| Bandwidth | 20 KHz, 0 dB |
| Impedance | 100 Ohm |
| Connector | RCA |
| IR Input | |
| Signal Type | 30-500 kHz modulated IR |
| Connector | 3.5 mm mini jack, Female |
| Power | 5 x 2.1mm 5VDC1A |
