Live HDMI Capture Adapter with USB 3.0 Output

HDCX-PROS

$499.00$388.83
Save $110.17
FREE Shipping on orders over $100
smartavi_madeinusa

The portable SmartAVI HDCX-Pro is a user-friendly HDMI capture adaptor. With one HDMI input and one USB output that supports USB 3.0 and 2.0 devices, it's never been easier to route a camera, graphics card or HDTV source into a computer or signage player, featuring resolution up to 1920x1200. This is an extremely affordable and convenient solution to manage a wide variety of video needs with a PC, digital signage or video wall system. Audio is also supported over HDMI.

Applications

  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch

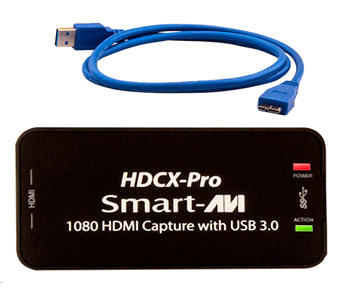

product

Features

  • HDCP and HDMI 1.4 Compliant
  • Supports USB 3.0 and USB 2.0
  • Compatible with Windows (7 and up), Linux (2.6.38 and up) and OS X (10.8 and up)
  • Supprts APIs inclufing DirectShow, DirectSound, V4L2, ALSA and QuickTime
  • Resolutions up to 1920x1200
  • Connect Multiple Units to a Single Computer
  • Enables up and down conversion of video resolution
  • Features automatic 48KHz PCM Stereo Audio Output
  • Plug-and-Play Ready, no Driver installation required
  • 64MB DDR2 Onboard memory for video frame buffering

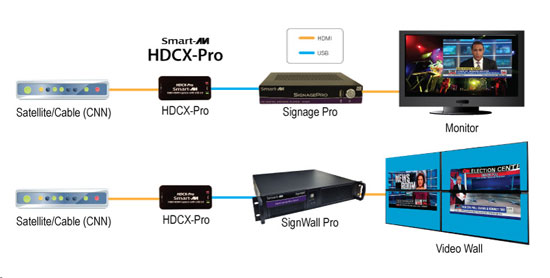

diagram

SmartAVI HDCX-PRO Specifications

Mechanical
Height 0.49 in. (1.24 cm)
Width 1.68 in. (4.2 cm.)
Depth 3.16 in. (8.02 cm.)
HDMI Input InterfaceHDMI 1.4 compliant with up to 1080p/60Hz 8 bit
Output FormatsResolutions from 640x480 to 1920x1200
Audio and Video CaptureMeets standards of UVC
and UAC
HDMI Audio Input LPCM audio signal
OS SupportWindows 7 and up, Linux, OS X
Software CompatibilityWindows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, QuickTime Broadcaster, QuickTime Player, Wirecast, etc
APIs DirectShow, DirectSound, V4L2, ALSA
Onboard Memory64MB DDR2, 16 bits @ 300 MHz
