16X16 4K HDMI Video Matrix Switch
HDR-16X16-PLUS-V3-S
Save $1,545.23
The HDR-16xl6 Plus V3 conforms to the HDMI 1.4 standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display. The HDR-16xl6 Plus V3 provides HDMI output up to 40 feet with HDTV resolutions of 480p, 720p, 1080i 1080p and 3840x2160 (4k) @30Hz. The system works with Blu-ray players, TiVo systems, HT PCs and satellite set-top boxes that connect to an HDMI display. Users can switch to any source locally or remotely via a RS-232, USB or TCP/IP connection. Our HDMI router is controlled by Windows®-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.
HDR-16X16-PLUS-V3-S Features and Benefits
- Switches 16 HDMI inputs with 16 HDMI outputs
- Sources can be routed independently to displays
- Switching controlled via the front panel, RS-232 and TCP/IP
- Supports video resolutions of 480p, 720 p, 1080i, 1080p and 3840x2160 (4k) @ 30Hz
- Supports 7.1 Digital Surround Sound Audio
- HDCP and HDMI 1.3 compliant
- Supports EDID for total control of compliant displays
- Delivers uncompressed digital video with zero signal loss
- Outputs HDMI up to 40 feet
- Rack mountable
FLEXIBLE CONTROL

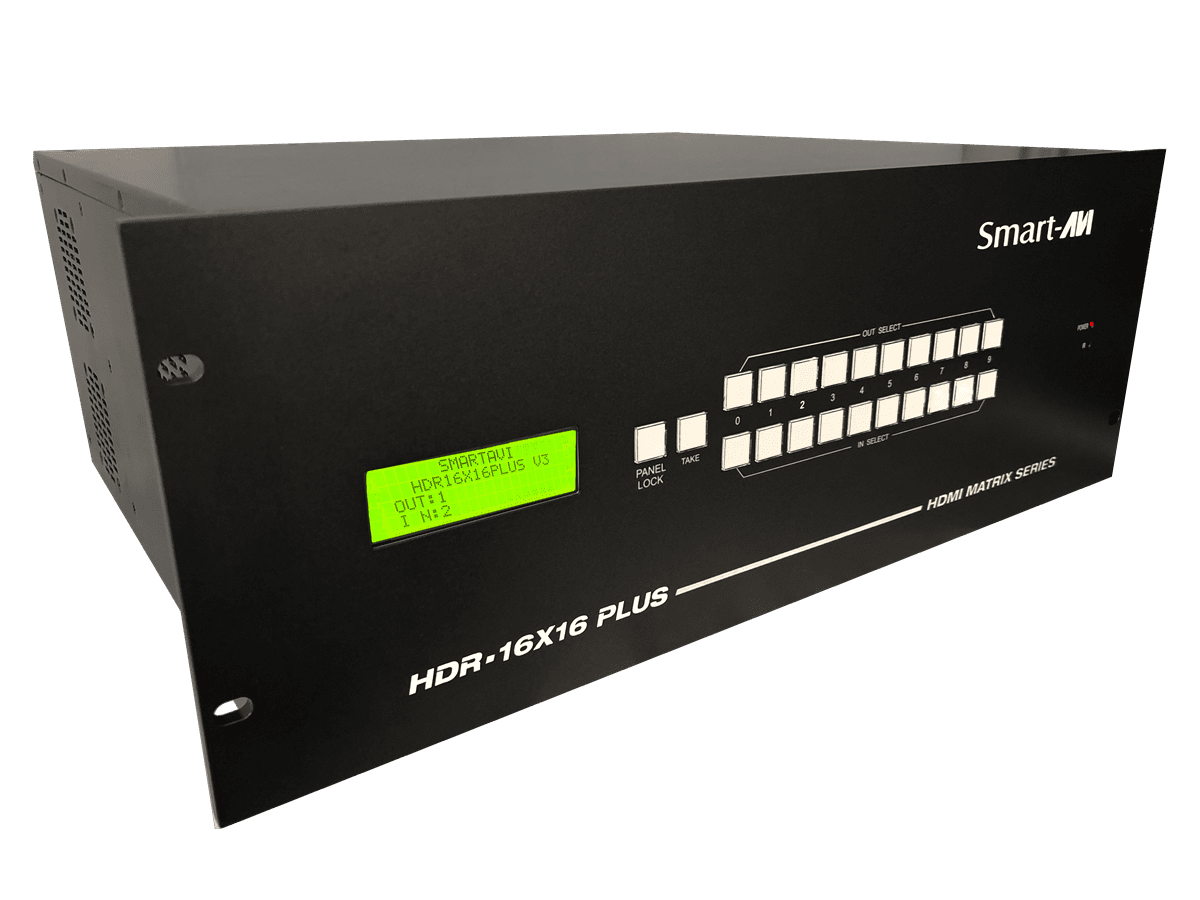

The SmartAVI HDR-16xl6 Plus V3 can be controlled from the front panel via keypad and LCD, allowing users to see which inputs are connected to which outputs. RS-232: Controlling the HDR-16xl6 Plus V3 has never been simpler with SmartAVI s Windows®-based SmartControl software. With SmartControl, users can assign a unique name to each port on the matrix, as well as each display, customizing projects to meet users' needs. Although all the functions of the matrix are available locally on the front panel of the HDR-16xl6 Plus V3, using SmartControl allows for customization of all the matrix's functions. TCP/IP: Remote control is essential to real-time management of the HDR-16xl6 Plus V3. SmartAVI's SMTCP module is the perfect solution to effective remote management. Simply connect the SMTCP module to the HDR-16xl6 Plus V3 and connect from anywhere on the Internet. When users need to make a change but can't be there in person, the SMTCP makes remote control a snap.
SOFTWARE SETUP
The HDR-16xl6 Plus V3 hardware comes with the easy-to-use, Windows®-based SmartControl software application that makes user interface simple. Using SmartControl, you can assign a unique name to each port on the HDR 16x16, customizing projects to your liking and needs.
HDR-16X16-PLUS-V3-S Applications
- Wall Displays
- Digital Signage
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Security
- Point-of-Sale
- Hotels/Resorts
- KVM Switch
HDR-16X16-PLUS-V3-S Specifications
| Mechanical | |
| Width | 17 in (19" rackmountable) |
| Height | 7.125 in |
| Depth | 15 in |
| Weight | 24.45 lbs |
| Video | |
| HDTV Resolutions | 480p, 720p, 1080i, 1080p, 3840×2160 (4k) @ 30Hz |
| TV Resolution | 480i |

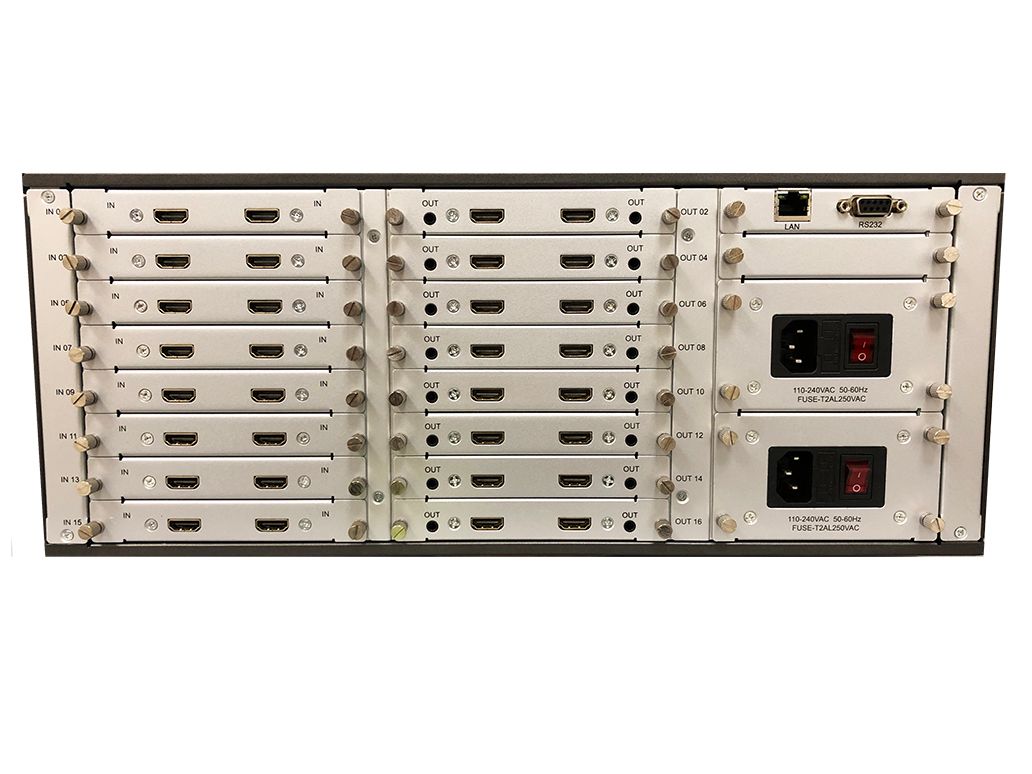

| Input interface | 16 HDMI Type A 19-pin Female TMDS |
| Output interface | 16 HDMI Type A 19-pin Female TMDS |
| Input Cable Length | Up to 40 ft. |
| Output Cable Length | Up to 40 ft. |
| Control | |
| Front Panel | Buttons & LCD Display |
| RS232 | DB9 Female, 9600 bps, N, 81, No flow control |
| TCP/IP | On-Board LAN |
| Other | |
| Power | Internal 110-240 VAC, 50-60 HZ, 60 Watts |
| Approvals | FCC, UL, CE, RoHS Compliant |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | -20-140°F (-20-60°C) |
HDR-16X16-PLUS-V3-S is the part number for the full SmartAVI HDR-16×16 Plus V3 16 Port 4K 30Hz HDMI Matrix Switch and consists of the HDR16X16V3 16-port HDMI router and CCPWR06 power supply. The HDR-16X16-PLUS-V3-S is also known as the HDR16X16PLUS-V3-S.
UPC 813280017893
EAN 0813280017893
