4K Resolution 4x4 HDMI Router with IR Remote

HDR-4X4-Plus-S

$799.00$622.60
Save $176.40
FREE Shipping on orders over $100
smartavi_madeinusa

The SmartAVI HDR-4x4-Plus allows users to independently route four inputs to four displays. Four outputs give users flexibility while routing HD audio and video signals with four displays. The HDR-4x4-Pro eliminates the need to disconnect and reconnect HDMI sources to a single display. The device is compatible with computer sources, live HD television feeds, Blu-ray players, gaming consoles, video cameras and more. Controlling the matrix switch is simple with the front-panel buttons, the included infrared remote control and the RS-232 port.

product

Features

  • Wall Displays
  • Digital Media
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security

Features

  • Supports 4K/2K Input/Output
  • 4x4 Non-Blocking, HDMI Matrix Switch
  • Distributes Any of the Four Inputs to Any of the Four HDMI Output Displays
  • EDID Learning Mode
  • Includes IR Remote
  • Supports RS-232 Control
  • HDCP and HDMI 1.4 Compliant

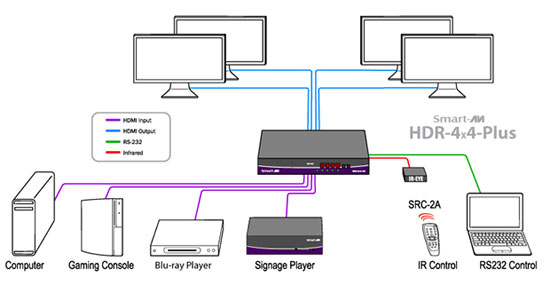

diagram

SmartAVI HDR 4x4 Plus Specifications

Mechanical
Height 1.25 in. (3.81 cm)
Width 11.8 in. (21.84 cm.)
Depth 5 in. (13.71 cm.)
Weight1.5 lbs.
Video FormatHDMI
DVI ComplianceSingle-link DVI-D 1.1 with Adapter
ResolutionUp to 3840x2400 @30Hz
Input Interface(4) HDMI [7.1ch audio & video]
Output Interface(4) HDMI [7.1ch audio & video]
ConnectorType A [19-pin female]
PowerExternal 100-240 VAC/5VDC2A @10W
UPC / EAN Barcode icon
UPC 813280017886
EAN 0813280017886
