8X8 4K HDMI Video Matrix


Save $419.26
FREE Shipping on orders over $100

With the HDR-8x8-Plus, users can independently route eight video inputs to eight displays using the latest in 4K (3840x2160 @30Hz) HDMI video technology. The HDR-8x8-Plus has eight outputs that offer the flexibility to distribute HD audio and video signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMIs to a single display. Controlling the matrix switch is simple with the front-panel buttons, the included infrared remote control and the RS-232 port. Even use the TCP/ IP controls to manage the unit from a web browser. The perfect multi-switch solution for your home theatre system, the HDR- 8x8-Plus is compatible with computers, live HD TV feeds, Blu-ray players, gaming consoles, video cameras and more.

Product Benefits and Features

  • 4K Input/Output (3840x2160 @30Hz)
  • 8x8 Non-Blocking, HDMI Matrix Switch
  • Distribute any eight inputs to any eight HDMI output displays
  • EDID Learning Mode
  • Includes IR Remote
  • Supports RS-232 Control
  • HDCP and HDMI 1.4 Compliant
  • SmartAVI PC Software
  • Integrated TCP/IP Controller

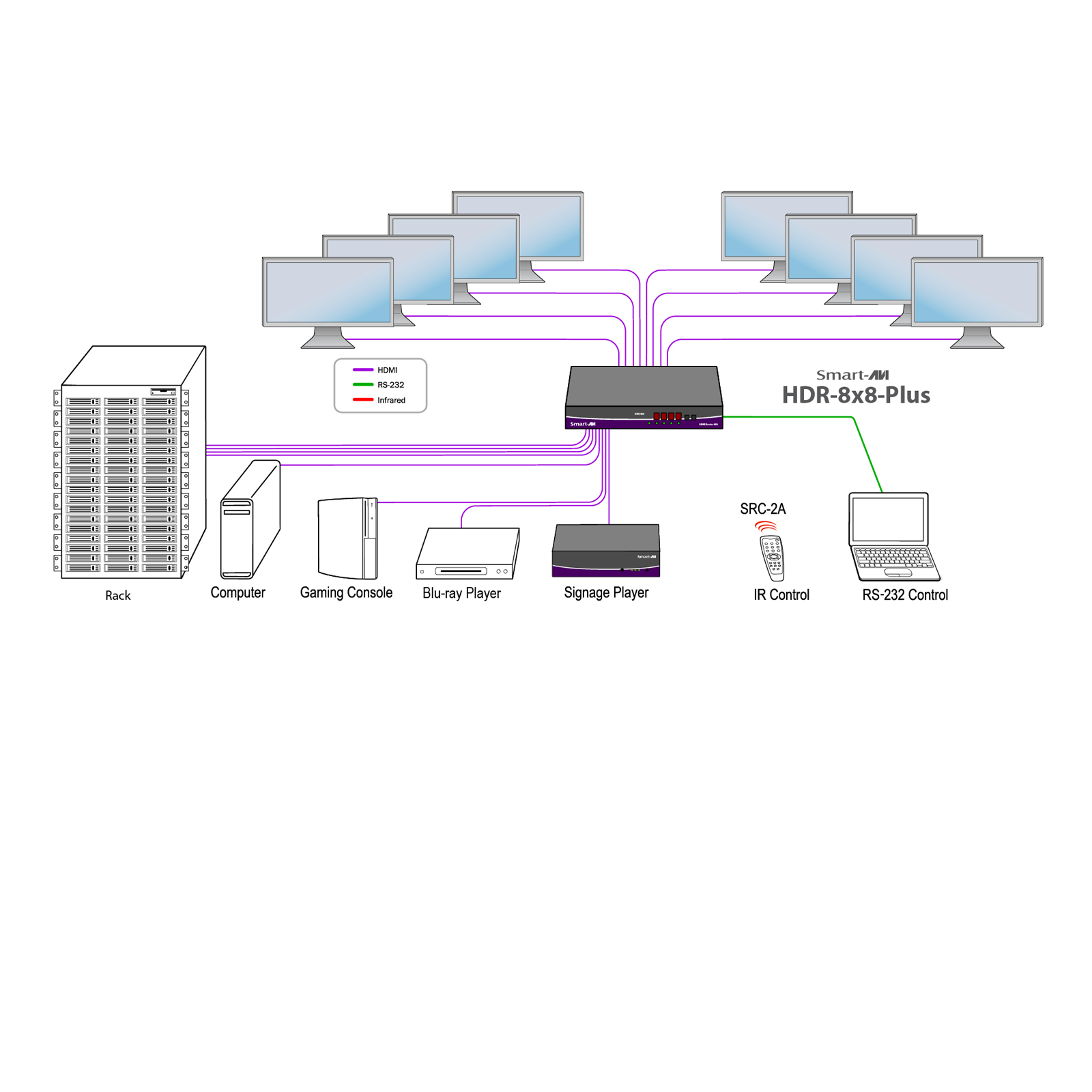

Product Diagram

Width17.2 in (436.9 mm.)
Height1.75 in. 2U (44.5 mm.)
Depth8.30 in. (211 mm.)
Weight6.17 lbs (2.8 kg.)
FormatHDMI 1.4
DVI ComplianceSingle-link DVI-D 1.1 with Adapter
HDCP Compliance1.0/1.1
Video BandwidthSingle-link 340MHz [10.2Gbps]
ResolutionUp to 3840x2160 @30Hz
Input Interface(8) HDMI (7.1ch audio & video)
Output Interface(8) HDMI (7.1ch audio & video)
ConnectorHDMI Type-A (19-pin female)
Maximum Cable Length20 ft.
Front PanelTact Switch
IRVia Remote Control with IR Type 3
PCRS-232 Control
TCP/IP Controlvia Web Browser
PowerExternal 100-240 VAC/12VDC4A
Max Consumption20W
ApprovalsUL, CE, RoHS Compliant
Operating Temperature32-95°F (0-35°C)
Storage Temperature-4-185°F (-20-85°C)
