HDMI 16X16 Router

HDR16X16S

$8,999.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

The HDR16X16 conforms to the HDMI (High Definition Media Interface) standard and provides a connection to view any sixteen HDMI video sources on any combination of sixteen video displays. The matrix configuration provides maximum flexibility, allowing switching between any high-definition source and/or display. The SmartAVI HDMI Router 16X16 provides HDMI output up to 40 feet and at HDTV resolutions of 480p, 720p, 1080i and 1080p. The system works with HD-DVD players, TiVo systems, HT PCs, and satellite set-top boxes that connect to an HDMI display. And users can switch to any source locally or remotely via a RS-232, IR, USB or TCP/IP connection. Our HDMI router is controlled by Windows¨-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.

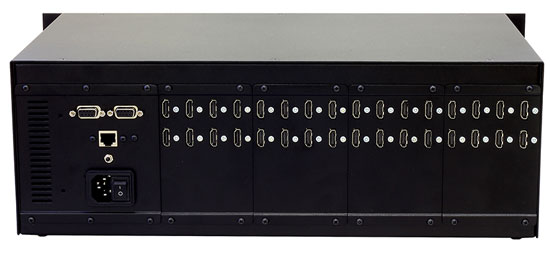

product

Applications

  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch

Features

  • Switches 16 HDMI inputs with 16 HDMI outputs
  • Sources can be routed independently to displays
  • Switching controlled via the front panel, RS-232, IR, USB and TCP/IP
  • Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
  • Supports 7.1 Digital Surround Sound Audio
  • HDCP and HDMI 1.3 compliant
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Outputs HDMI up to 40 feet
  • Rack-mountable

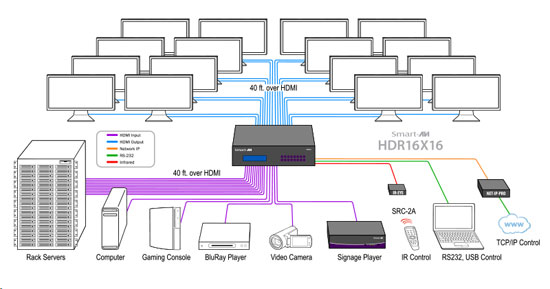

diagram

Specifications for SmartAVI HDR 16x16

Mechanical
Height 5.25 in. (13.33 cm)
Width 19 in. (48.26 cm.)
Depth 7 in. (17.78 cm.)
Weight15 lbs
HDTV Resolutions480p, 720p, 10810i, 1080p
TV Resolutions480i
Input Interface 16 HDMI Type A 19-pin Female TMDS
Output Interface16 HDMI Type A 19-pin Female TMDS
Input Cable LengthUp to 40 ft
Output Cable LengthUp to 40 ft
ControlPanel, RS-232, IR, USB, and TCP/IP
PowerInternal 100-240 VAC, 50-60 HZ, 60 Watts
UPC / EAN Barcode icon
UPC 813280017893
EAN 0813280017893
