1U HDMI 8x8 Router with internal network control



For upgrade or replacement options: Contact Us


SmartAVI's non-blocking DVR 16X16 LP-IS digital video matrix switch provides an easy and dynamic approach to switching the DVI output from up to 16 computers, to up to 16 displays. The matrix configuration provides maximum flexibility, allowing switching between any digital video source and/or display. The DVR 16x16 LP-IS provides digital video output up to 30 feet and at resolutions up to 1920 x 1200. The switching can be controlled directly via the front panel, or remotely using RS-232 commands, IR, or TCP/IP (optional). The DVR16X16 LP-IS is controlled by Windows¨-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.

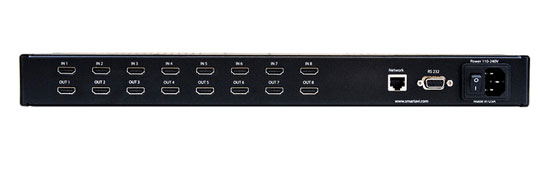

product back


  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale


  • Internal network control
  • Sources can be routed independently to displays
  • Supports 7.1 Digital Surround Sound Audio
  • HDCP and HDMI 1.4 compliant
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Rack mountable


SmartAVI HDR 8x8 PRO Specifications

Height 1.75 in. (4.44 cm)
Width 19 in. (48.26 cm.)
Depth 7 in. (17.78 cm.)
Weight4 lbs.
HDTV Resolutions480p, 720p, 1080i, 1080p
TV Resolution480i
Input Interface8 HDMI Type A 19-pin female TMDS
Output Interface8 HDMI Type A 19-pin gemale TMDS
Input Cable LengthUp to 40 ft.
Output Cable LengthUp to 40 ft
ControlInternal Network Control
UPC / EAN Barcode icon
UPC 813280021548
EAN 0813280021548
Question: Does the hdmi Matrix switch Support High Dynamic Range (hdr)
Answer: Thank you for your inquiry,

High Dynamic Range is a feature of a source and a television... However, after doing some digging the simple answer is no, because HDR is a feature carried by HDMI 2.0a and the HDR-8x8-PLUS only goes up to HDMI 1.4.

Please note, the HDR-8x8-LP has been replaced by the HDR-8x8-PLUS.

Hope this helps!
