SmartAVI HDR LPS HDMI 8x8 Router



For upgrade or replacement options: Contact Us


SmartAVI's non-blocking DVR16X16 digital video matrix switch provides an easy and dynamic approach to switching the DVI output from up to 16 computers, to up to 16 displays. The matrix configuration provides maximum flexibility, allowing switching between any digital video source and/or display. The DVR 16x16 provides digital video output up to 30 feet and at resolutions up to 1920 x 1200. The switching can be controlled directly via the front panel, or remotely using RS-232 commands, IR, or TCP/IP (optional). The DVR16X16 is controlled by Windows¨-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.

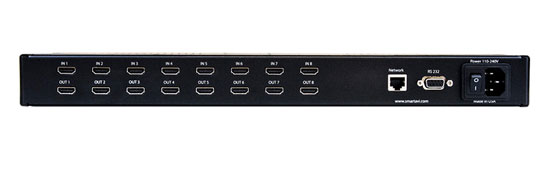

product back


  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale


  • Sources can be routed independently to displays
  • Supports 7.1 Digital Surround Sound Audio
  • HDCP and HDMI 1.4 compliant
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Rack mountable


SmartAVI HDR 8x8 PRO Specifications

Height 1.75 in. (4.44 cm)
Width 19 in. (48.26 cm.)
Depth 7 in. (17.78 cm.)
Weight4 lbs.
HDTV Resolutions480p, 720p, 1080i, 1080p
TV Resolution480i
Input Interface8 HDMI Type A 19-pin female TMDS
Output Interface8 HDMI Type A 19-pin gemale TMDS
Input Cable LengthUp to 40 ft.
Output Cable LengthUp to 40 ft
ControlPanel, RS-232 and TCP/IP
UPC / EAN Barcode icon
UPC 813280017930
EAN 0813280017930
