8x16 HDMI 1080p Martix w/ audio and IR, up to 450 ft via CatX, Expandable



For upgrade or replacement options: Contact Us

The HDR-ULTRA is a High Definition video router that enables users to route HD signals up to 450 feet over a single Cat5e/6 cable using HDBaseT technology, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations up to 8x16.

Product Benefits and Features

  • Switches any HDMI source input to any output up to 8x16
  • Supports up to 450 ft of signal extension
  • Sources can be routed independently to any display
  • Supports high definition video resolutions of 480p, 720p,1080i and 1080p
  • Supports PC resolutions VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
  • Supports digital video formats in Deep Color to 12bit per color
  • Compatible with HDMI version 1.3 and DVI
  • Supports 7.1 Digital Surround Sound Audio
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Input cable equalization
  • HDMI Output up to 25 feet and longer with Premium HDMI Cables

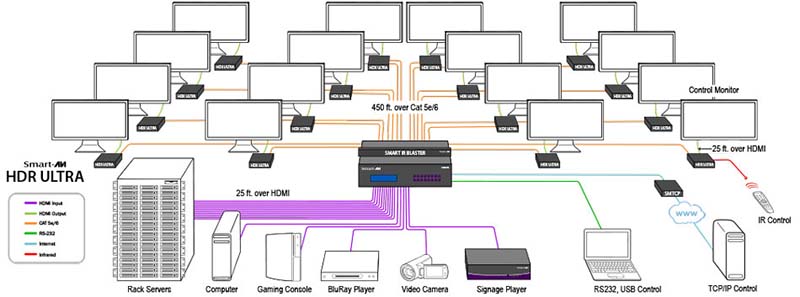

Product Diagram

Width19 in (482.6 mm.)
Height5.25 in. 3U (133.35 mm.)
Depth13 in. (330.2 mm.)
Weight15 lbs (6.80 kg.)
Video Amplifier Bandwidth3.2G
Input Video SignalVideo (TMDS) 0.5~1.0Vpp
Input DDC Signal5 volts
Signal SupportsHDMI Standard, DVI and HDCP compliant
Pixel RatesClock frequency beyond 165Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480, 720p, 1080i, 1080p HDMI formats and DVI up to 1920x1200x60hz
Input Cards2x HDMI Type A 19-pin Female TMDS
Output Cards2x RJ-45 HDBaseT; HDMI over UTP Transmission; Full HD 1080p 36-bit color:450 ft cat6 23AWG
Input Slots4 cards of 2 HDMI input each (8 Slots Available)
Output Slots8 cards of 2 RJ45 output each
Video TypeRGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
AudioDTS-HD Master Audio, Dolby True- HD & Dolby Digital Plus integrated in HDMI signal
Front Panel2x8 keyboard with 4x40 LCD
IRControl is 38Khz RC5; Bypass IR from 30Khz to 60Khz
RS2329600bps, Software flow DB9 Female
TCP/IPWebserver, Telnet
Power50/60Hz, 100~230 VAC
Operating Temperature32-104°F (0-40°C)
Storage Temperature20-140°F (-20-60°C)
