12X16 HDBase HDMI, RS-232, IR, TCP/IP CAT5 Expandable Matrix Switcher



For upgrade or replacement options: Contact Us

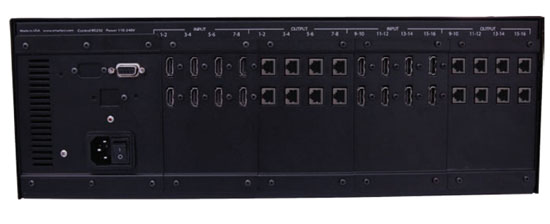

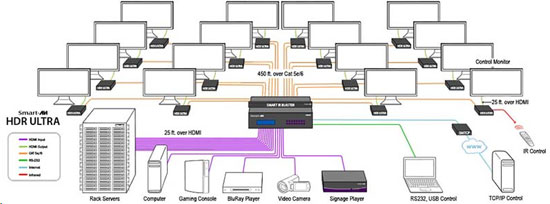

The HDR-ULTRA 12x16 is a High Definition video router that enables users to route HD signals up to 450 feet over a single Cat5e/6 cable using HDBaseT technology, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations 12x16.


  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch



  • Switches any HDMI source input to any output up to 16x16
  • Supports up to 450 ft of signal extension
  • Sources can be routed independently to any display
  • Supports high definition video resolutions of 480p, 720p,1080i and 1080p
  • Supports PC resolutions VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
  • Supports digital video formats in Deep Color to 12bit per color
  • Compatible with HDMI version 1.3 and DVI
  • Supports 7.1 Digital Surround Sound Audio
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Input cable equalization
  • HDMI Output up to 25 feet and longer with Premium HDMI Cables


SmartAVI HDRULT-Ultra 12x16 Specifications

Height 5.25 in. (13.33 cm)
Width 19 in. (48.26 cm.)
Depth 13 in. (33.02 cm.)
Video Amplifier Bandwidth3.2G
Input Video SignalVideo (TMDS) 0.5~1.0 Vpp
Input DDC Signal5 volts
Signal SupportsHDMI Standard, DVI and HDCP compliant
Pixel RatesClock frequency beyond 165 Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480, 720p, 1080i, 1080p, HDMI formats and DVI up to 1920x1200x60hz
Input Cards2x HDMI Type A 19-pin femal TMDS
Output Cards2x RJ-45 HDBaseT
HDMI over UTP Transmission
Full HD 1080p 36-bit colo: 450 ft cat5 23AWG
Video TypeRGB/YCBCR : 24/30/36-BITS, YCBCR ;
8/10/12/16/20/24 bits
Audio SupportedDTS-HD Master Audio, Dolby True-HD & Dolby Digital Plus integrated in hdmi signal
Power Supply50/60Hz, 100~230 VAC
IRControl is 38Khz RC5
Bypass IR from 30 Khz to 60 Khz
