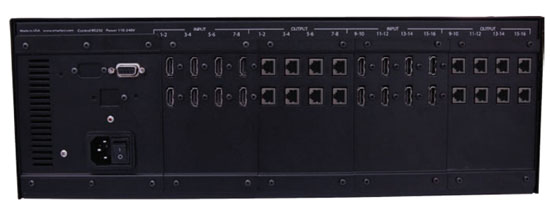

16X04 HDBase HDMI, RS-232, IR, TCP/IP CAT5 Expandable Matrix Switcher
HDRULT-1604S

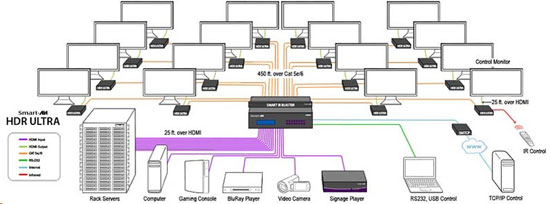

The HDR-ULTRA 16x4 is a High Definition video router that enables users to route HD signals up to 450 feet over a single Cat5e/6 cable using HDBaseT technology, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations 16x4.
Applications
- Wall Displays
- Digital Signage
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Security
- Point-of-Sale
- Hotels/Resorts
- KVM Switch
Features
- Switches any HDMI source input to any output up to 16x16
- Supports up to 450 ft of signal extension
- Sources can be routed independently to any display
- Supports high definition video resolutions of 480p, 720p,1080i and 1080p
- Supports PC resolutions VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Supports digital video formats in Deep Color to 12bit per color
- Compatible with HDMI version 1.3 and DVI
- Supports 7.1 Digital Surround Sound Audio
- Supports EDID for total control of compliant displays
- Delivers uncompressed digital video with zero signal loss
- Input cable equalization
- HDMI Output up to 25 feet and longer with Premium HDMI Cables
SmartAVI HDRULT-Ultra 16x4 Specifications
| Mechanical | |
| Height | 5.25 in. (13.33 cm) |
| Width | 19 in. (48.26 cm.) |
| Depth | 13 in. (33.02 cm.) |
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0 Vpp |
| Input DDC Signal | 5 volts |
| Signal Supports | HDMI Standard, DVI and HDCP compliant |
| Pixel Rates | Clock frequency beyond 165 Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480, 720p, 1080i, 1080p, HDMI formats and DVI up to 1920x1200x60hz |
| Input Cards | 2x HDMI Type A 19-pin femal TMDS |
| Output Cards | 2x RJ-45 HDBaseT HDMI over UTP Transmission Full HD 1080p 36-bit colo: 450 ft cat5 23AWG |
| Video Type | RGB/YCBCR : 24/30/36-BITS, YCBCR ; 8/10/12/16/20/24 bits |
| Audio Supported | DTS-HD Master Audio, Dolby True-HD & Dolby Digital Plus integrated in hdmi signal |
| Power Supply | 50/60Hz, 100~230 VAC |
| IR | Control is 38Khz RC5 Bypass IR from 30 Khz to 60 Khz |
UPC 813280021678
EAN 0813280021678
