SmartAVI 16x16 IR (Infrared) Blaster - Switch via IR

HDRULT-IR16

$899.00$700.52
Save $198.48
FREE Shipping on orders over $100

Use the SmartAVI HDRULT-IR16 to control matrix switching up to 16x16, with simultaneous control of up to 16 input devices, via infrared.

The IR-Blaster features full matrix signal routing so that each IR input can be routed to any combination of IR outputs. Additionally, each output can drive the IR emitter up to 30 feet away. The router is fully compliant with standard modulated IR protocols and the latest IRDA standards.

  • Controls routers up to 16x16
  • Full matrix signal routing - each IR input can routed to any combination of IR outputs
  • Fully compliant with standard modulated IR protocols and the latest IRDA standards
  • Enables matrix switching and input device control
  • Allows users to control A/V set ups remotely
  • Features SmartAVI SRC-2A remote control

Input Device Control

The IR-Blaster provides a second function that makes it a must-have device in a wide variety of situations. By connecting IR emitters from the IR-Blaster to input source devices - like Blu-ray players, HDTV cable boxes and more - users can operate the source via its own specialized remote. Changing channels, adjusting volume, skipping chapters, operating DVR and more can be managed by the remote control just by pointing it at the conveniently located IR-Eye. The IR-Blaster then sends the data directly to the input source for instantaneous device control.

One Product, Two Uses

The combined functionality of the IR-Blaster - remote matrix switching and input source operation - makes it crucial for A/V distribution chains where the matrix and its devices are kept away from where the user needs to manage the displays. The IRBlaster is a handy, easy-to-install product that transforms the use of a matrix in almost any environment. It only requires the additional SmartAVI remote alongside the input source's remote, and then users can efficiently and effectively control a wide variety of audio and video.

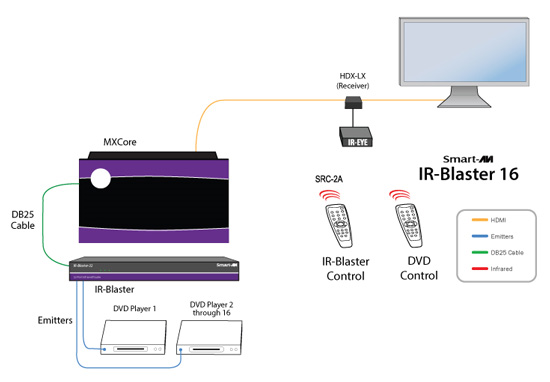

HDRULT-IR16 Application Diagram

 SmartAVI HDRULT-IR16 Specifications:

Mechanical
Width17.0 in.
Height3.75 in.
Depth1.75 in.
Weight5.0 lb. (2.43 kg.)
IR EYE Input
IR Frequency Range30KHz to 80KHz
Capture DistanceUp to 30 ft
Cable Connector3.5mm mono jack
IR Signal IndicatorGreen LED
Signal TypeTTl
IR Emitter Output
R Frequency Range30KHz to 80KHz
Emitter DistanceUp to 25 ft
Cable Connector3.5mm stereo jack
IR Signal IndicatorGreen LED
Other
Powr Requirements12VDC 2A
Cable LinkDB25 to matrixes
UPC / EAN Barcode icon
UPC 813280021722
EAN 0813280021722
