SmartAVI HDMI 2-Port Splitter. Includes: [HDS2P and PS5VD1A]


Save $43.94
FREE Shipping on orders over $100

The SmartAVI HDS-2P is a 2 port HDMI splitter including HDS-2P and PS5VD1A. Using SmartAVI's HDMI 2 x 1 Splitter, it is possible to connect one HDMI/HDTV component to up to two display screens. Transmit a high-definition source such as Blu-ray player, gaming console, computer or cable receiver easily while viewing on two HDTV monitors. This is perfect for lounges, hotel check-in areas, restarants, retail locations or even civic centers.

**Also known as HDS-2P3D

SmartAVI HDS-2P Features:

  • HDMI 1.3c and DVI 1.0 compliant
  • HDCP 1.2 compliant
  • Wide Frequency Range: 25MHz~225MHz
  • Video bandwidth: 6.7GBPS
  • Resolution up to 1080p or WUXGA
  • Supports CEC (not bypassing)
  • Supports Dolby Digital, DTS-HD and Dolby True HD audio
  • Easy installation

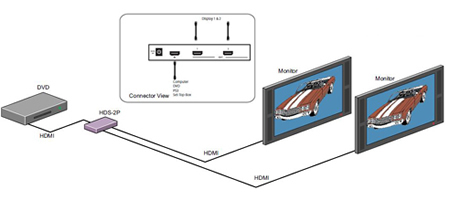

SmartAVI HDS-2P Application Diagram
SmartAVI HDS-2P Application Diagram

SmartAVI HDS-2P Specifications:

HDMI Compliance HDMI 1.3c(Deep color, xvYcc color space supported)
DVI Compliance DVI 1.1
HDCP Compliance Yes
Video Bandwidth Single link 225MHz (6.75Gbps)
Video Support Up to WUXGA [1920x1200 @ 60Hz] & UXGA [1600x1200 @ 60Hz]
Audio Support DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
Input TMDS Signal 1.2 Volts (peak to peak) TTL
Input 1XHDMI[7.1ch audio & video]
Output 2XHDMI[7.1ch audio & video]
HDMI Connector Type A[19-pin female]
UPC / EAN Barcode icon
UPC 813280021753
EAN 0813280021753
