SmartAVI HDMI 8-Port Splitter. Includes: HDS8P and PS5VD4A

HDS8PS

$399.00$310.91
Save $88.09
FREE Shipping on orders over $100

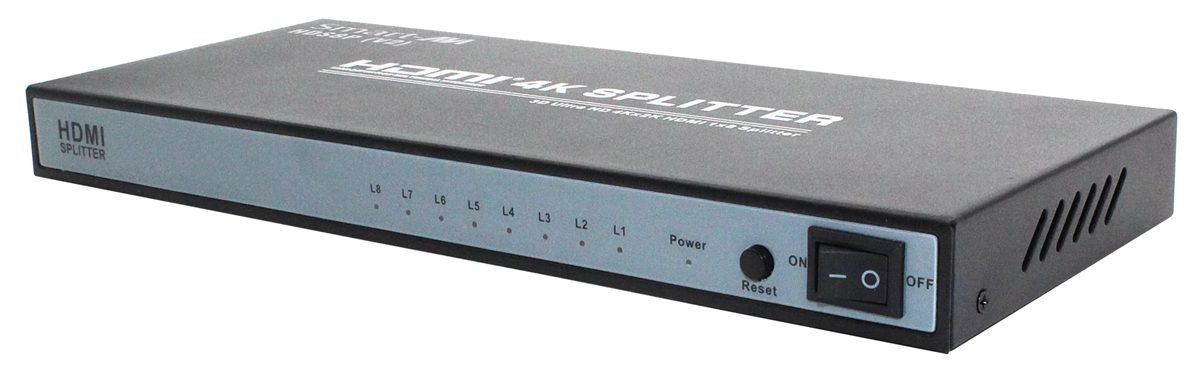

The SmartAVI HDS-8PS is a HDMI 8-Port Splitter. It Includes the HDS8P and PS5VD4A.

The HDS-8P HDMI splitter allows set-top boxes, DVD players, HDMI game console, and other HDTV devices with an HDMI output to be connected to up to eight HDTV displays. It supports HDTV's 480i/480p/720i/720p/1080i/1080p & PC's WUXGA/1920x1200 and works with flat panel, plasma screen, projector, switch, splitter, computer video display, HDTV/HDCP, set-top boxes, DTV and DVD.

HDMI can output up to 20 feet from an HDMI device to the HDMI splitter, and then 20 feet from the HDMI splitter to the displays.

SmartAVI HDS-8PS Features:

  • HDMI 1.3c and DVI 1.0 compliant
  • HDCP 1.2 compliant
  • Wide Frequency Range: 25MHz~225MHz
  • Video bandwidth: 6.7GBPS
  • Resolution up to 1080p or WUXGA
  • Supports CEC (not bypassing)
  • Supports Dolby Digital, DTS-HD and Dolby True HD audio
  • Easy installation

SmartAVI HDS-8PS Application Diagram
SmartAVI HDS-8PS Application Diagram

 SmartAVI HDS-8PS Specifications:

Mechanical
Width 17.0 in. (43.2 cm.)
Height 1.75 in. (4.4 cm.)
Depth 5.0 in. (12.7 cm.)
Weight 2.0 lbs. (0.9 kg.)
Video
Format HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 225MHz [6.75Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p

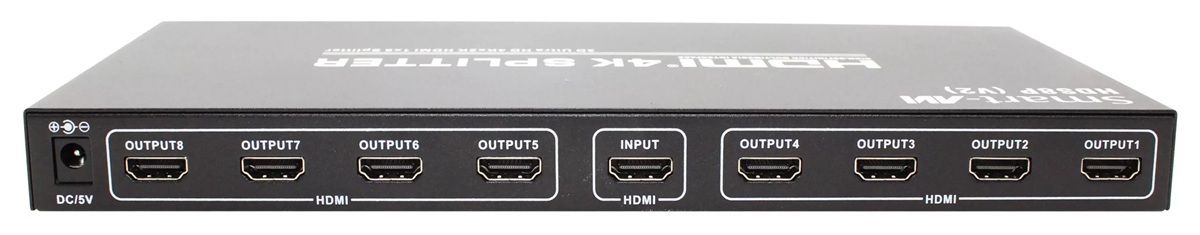

Input Interface (1) HDMI[7.1ch audio & video]
Output Interface (8) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Audio
Supported Formats DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
Power External 5VDC4A @ 20W
Signals
DDC Signal 5 Volts (peak to peak), TTL
TDMS Signal 1/2 Volts (peak to peak), TTL
Approvals
Device: CE, ROHS
Power Supply  C-UL US, CE
UPC / EAN Barcode icon
UPC 813280021777
EAN 0813280021777
