HDMI Matrix, Video Wall, Digital Signage All in One Device

HDS16PS

$699.00$544.68
Save $154.32
FREE Shipping on orders over $100

The HDS16P HDMI splitter gives users the ability to take a single HDMI input and route it to 16 displays. With no loss of signal quality and a simple, hardware-only implementation, the HDS16P is the easiest and most cost-effective way to get a stunning HD signal to 16 displays simultaneously and instantly. There's no need for multiple source devices for multiple HD displays when using this handy splitter. The HDS16P splitter delivers up to 10.2 Gbps data throughput and supports exciting HDMI features like 3D video and the latest in amazing 4K resolution.

  • Ultra HD | 4K 30Hz Resolution and Full 3D
  • One HDMI 1.4 input signal split to 16 HDMI 1.4 sink devices
  • HDCP 1.3 protocol compliant
  • Supports CEC
  • Supports deep color 30bit, 36bit
  • Supports Blu-ray players
  • Digital audio format, with DTS-HD/DolbytrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Supports signal retiming
  • Input up to 50 feet AWG26 HDMI 1.3 standard cable length
  • Output up to 80 feet AWG26 cable length
  • No loss of quality
  • Hardware-only solution

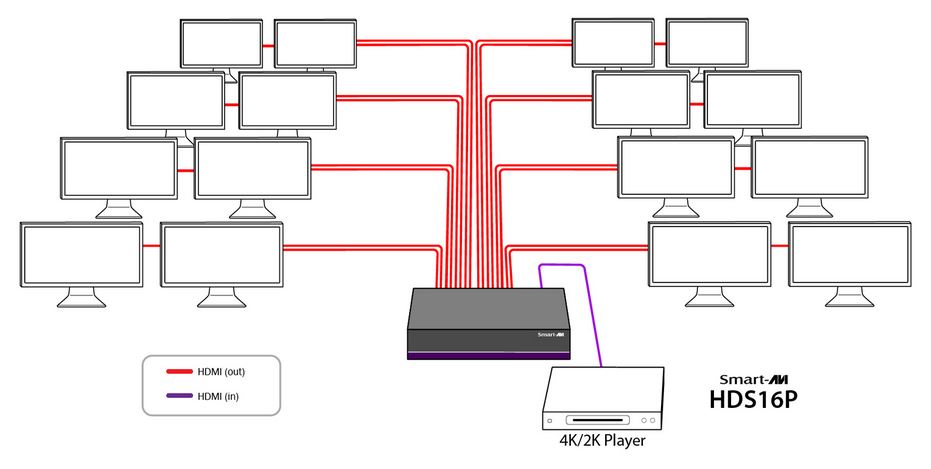

Product Diagram

Video
HDMI versionHDMI 1.4a
HDCP versionHDCP1.3
HDMI resolutionFull HD 1080p (1920x1080 at 60Hz), 3D and 4Kx2K resolution
Support video color format24bit/deep color 30bit,36bit
Support audio formatDTS-HD/Dolby-trueHD/LPCM7.1/DTS/ Dolby-AC3/DSD
Max bandwidthUp to 10.2 Gbps (all channel)
Input/Output TMDS signal0.5~1.5Volts p-p(TTL)
Input/Output DDC signal5Volts p-p (TTL)
Other
Input cable distance≤15m HDMI AWG26
Output cable distance≤25m AWG26 HDMI 1.3 standard cable
Max working current1A
Power adapter formatInput: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/4A
Operating Temperature range5-131°F (-15-55°C)
Operating Humidity range5 to 90% RH, Non-Condensing
UPC / EAN Barcode icon
UPC 813280021746
EAN 0813280021746
