SmartAVI HDS4P 4K/2K 4-port HDMI Splitter


Save $54.97
FREE Shipping on orders over $100

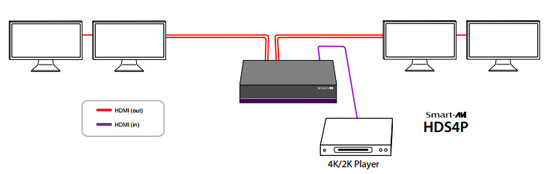

The HDS4P-V2 is the second generation HDMI splitter gives users the ability to take a single HDMI input and route it to four displays. With no loss of signal quality and a simple, hardware-only implementation, the HDS4P-V2 is the easiest and most cost-effective way to get a stunning HD signal to four displays simultaneously and instantly. There's no need for multiple source devices for multiple HD displays when using this handy splitter.

The HDS4P-V2 splitter delivers up to 10.2 Gbps data throughput and supports exciting HDMI features like 3D video and the latest in amazing 4K resolution. That means users are always getting top-quality video from the device.

  • Ultra HD | 4K (4096x2160) Resolution and Full 3D
  • One HDMI 1.4 input signal split to four HDMI 1.4 sink devices
  • HDCP 1.3 protocol compliant
  • Supports CEC
  • Supports deep color 30bit, 36bit
  • Supports Blu-ray players
  • Digital audio format, with DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Supports signal retiming
  • Input up to 50 feet AWG26 HDMI 1.3 standard cable length
  • Output up to 80 feet AWG26 cable length
  • No loss of quality
  • Hardware-only solution

SmartAVI HDS4P-V2-S Applications

  • Restaurant/Bar
  • Home Entertainment
  • Wall Displays
  • Digital Media
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resort


With the HDS4P-V2 high-quality HDMI splitter, captivate your audience by showcasing your presentations on multiple screens simultaneously. Leave a lasting impression with clear and detailed visuals that support resolutions up to 4K @30Hz. Elevate your respectability and make an impact during conferences, meetings, or lectures.


This HDMI splitter is the perfect solution for businesses looking to maximize brand exposure through digital signage. Connect multiple displays to a single media player or computer and ensure synchronized content across all screens. Deliver consistent and eye-catching advertisements, announcements, or information in public areas, and capture the attention of existing and potential customers.


Video production and editing professionals require accurate presentation of their work on different monitors. The HDS4P-V2 HDMI splitter allows you to connect multiple high-resolution monitors to a single workstation, providing an efficient workflow and ensuring your creative vision comes to life easily and accurately. Experience unparalleled precision and productivity in your video projects.


SmartAVI HDS4P-V2-S Specifications

Height 0.8 in. (2.03 cm)
Width 5.8 in. (17.73 cm.)
Depth 2.5 in. (6.35 cm.)
Audio FormatDTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support Video Color Format24bit/deep color 30bit,36b
Video OutputFull HD 1080p (1920x1080 at 60Hz), 3D and 4Kx2K resolution
HDMI / HDCP VersionHDMI1.4a / HDCP1.3
Max bandwidthUp to 10.2 Gbps (all channel)
Input/Output TMDS signal0.5~1.5Volts p-p(TTL)
Input/Output DDC signal5Volts p-p (TTL)

The HDS4P-V2-S is the full system consisting of the HDS4P-V2: 4-Port 4K/2K HDMI Splitter and the PS5VD3A-WLLMNT: power supply. The HDS4P-V2-S is the new updated version and was formerly known as the HDS4pS. The HDS4pS was also known as THE HDS-4P3D, HDS4P3D, HDS-4P and HDS-4PS.

UPC / EAN Barcode icon
UPC 813280021760
EAN 0813280021760
Question: How can i find HDS-4P in Dubai?
Answer: Thank you for your inquiry,

We can sell the HDS4PS to Dubai. Please refer to our International Order Policy for requirements, and feel free to contact our sales team directly.
