SmartAVI HDMI CAT6 STP Extender



Replaced by: SmartAVI HDX-Plus
Alternative options: Contact Us

The SmartAVI HDX-1000 is a  HDMI CAT6 STP Extender which extends HDMI display with IR control up to 330 feet away.

Applications for the HDX-1000 include:

  • Home Use - Enhance your home entertainment center and extend HDMI devices throughout your home.
  • Presentations - The HDX1000 series enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
  • Data Broadcasting - Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors.
  • Learning and Training - HDX1000 can be used in educational presentations to multiple locations, in schools and in other training facilities.

SmartAVI HDX-1000 Features:

  • Extend HDMI display with IR control up to 330 feet away.
  • Top Image Quality at all Resolutions.
  • Maintains multiple high definition resolutions up to 1080p or 1920x1200 for computers.
  • Distances: 330ft with a CAT6 STP cable.
  • Compatible with all operating systems.
  • Supports digital video/audio.
  • Supports DDWG standards for HDMI compliant monitors.
  • HDCP compliant
  • HDMI compliant
  • Uses easy to install, inexpensive twisted pair.
  • Sends Infrared Remote over twisted pair.
  • Fully compliant with standard modulated IR and the latest IRDA.
  • Fully transparent path for all protocols and data transfers.

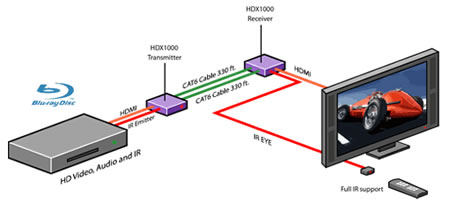

SmartAVI HDX-1000 HDMI Extender Application Diagram
SmartAVI HDX-1000 HDMI Extender Application Diagram

SmartAVI HDX-1000 Specifications:

Video Interface HDMI
Resolution  1920 x 1200 @ 60 Hz, Resolution up to 1280 x 1024 min.
Impedance 75 ohms
Input Interface HDMI (Single Link)
IR Input/Output
Signal Type 30-100 kHz modulated IR
Connector 3.5 mm mini jack, Female
System Cable
Type Cat6 UTP
Connector RJ45
Requirements Universal Switch mode PSU (90-240V Input) 5VDC
Connector  5 x 2.1mm DC jack
