SmartAVI HDX-4000 HDMI CAT6 STP 4-Port Transmitter with IR

HDX-4000S

$399.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

HDX-4000 is an innovative solution to extending any HDMI with optional infrared signal - be it a gaming console, Blue-ray player, etc. - over inexpensive CAT6 STP cabling up to 150 feet away to one to four remote displays.

It is the perfect solution for broadcasting high-definition content (480p, 720p, 1080i or 1080p) easily and inexpensively from a source to display screens for customers to view while keeping the player in a remote, secure location such as a computer room or back office of a business accessible only by key personnel.

The HDX-4000 is a compact, dynamic unit that is small and easily integrated into a digital display network such as in a retail store or bar/lounge. The transmitter and receiver units are extremely compact, which makes inclusion into your infrastructure very simple and handy.

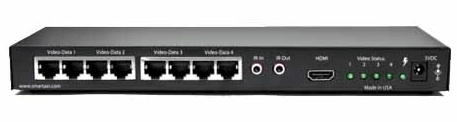

hdx4000 product

Features

  • Compact Transmitter/Receiver Units
  • Supports HDMI with Optional Bi-Directional Infrared Signal
  • Transmit Embedded Audio Signals
  • Perfect Image Quality at all Resolutions (480p, 720i, 720p, 1080i, 1080p)
  • Transmit HDMI 1080p/60 up to 150 Feet and 1080p/24 up to 280 Feet via Dual CAT6 Cabling
  • Bandwidth to 1.65Gps
  • Automatic DDC Learning from Local Monitor
  • Distances up to 150 Feet using Dual CAT6 STP Cabling
  • Compatible with all Operating Systems
  • Plug-and-Play - No Software Required

Applications

  • Retail Locations
  • Bars/Lounges
  • Showroom Floors
  • Convention Booths
  • Hotel/Resort
  • Check-In Counters
  • Corporate Demos
  • Educational Displays
  • Houses of Worship
  • Medical Facilities
  • Recording Editing Studio

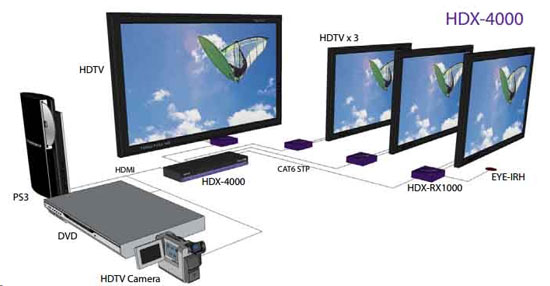

diagram

SmartAVI HDX-4000 Specifications

Mechanical
Height 1.25 in. (3.17 cm)
Width 3.5 in. (8.89 cm.)
Depth 10 in. (25.4 cm.)
Video InterfaceHDMI
Single Link Range480P, 720i/p, 1080i/p
Video Data Rate4.95Gbps
Resolution1920x1200 @60Hz, Resolutions up to 1280x1024 min. 75H
Input Interface19 pin HDMI female type A
IR Signal Type30-100kHz modulated IR
IR Connector3.5 mm mini jack, female
Power SupplyUniversal Switch mode PSU (30-240 input) 5VDC 2A
