Component Video/Audio/RS-232/IR Point-to-Point CAT5 Extender

HDX-PROS

$425.00$331.17
Save $93.83
FREE Shipping on orders over $100
smartavi_madeinusa

HDX-PRO a high-resolution HDTV and stereo audio extender component within SmartAVI's HDControl product family geared specifically toward home theater owners and designers. Using small transmitter and receiver units, you can broadcast HD desktop video, stereo audio signals, infrared and RS-232 over unshielded twisted pair (UTP) cabling. Using RS-232 and IR support, the HDX-PRO allows users to send commands such as volume control, channel viewing or power on/off, to single or multiple devices from remote locations.

Applications

  • Sports Bars/Lounges
  • Retail locations
  • Educational/Corporate training
  • Theme park design
  • Resort Check-in/Concierge areas
  • Command posts/centers

Features

  • Uses easy-to-install, inexpensive CAT5/5e/7/6/8
  • Extends output up to 1,000 feet
  • Supports high-resolution video up to 1920 x 1200
  • HDTV compatible (720p, 1080i, 1080p)
  • Supports Component Video (YPbPr)
  • 300 MHz bandwidth
  • Sends high-resolution HDTV, stereo audio, RS-232 and IR signals from one source to remote location using single cat5
  • Compatible with line level stereo audio signals
  • High ground loop immunity
  • Built-in power surge and transient protection
  • Designated trimmer in the remote unit to compensate for cable length
  • Compact metal case enclosure
  • External power supply
  • Transparent RS-232 and IR communication

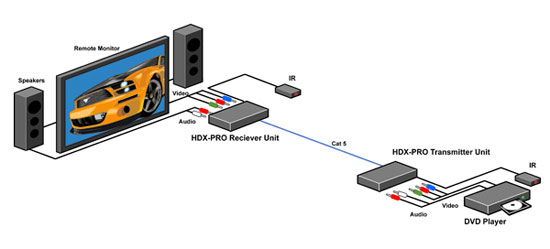

diagram

SmartAVI HDX-PRO Specifications

Bandwidth400 MHz
Analog Signal Level1 volt
Impedance75 Ohm
Type CAT5 UTP RIA 568A
ConnectorRJ45, 3.5 mm stereo jack emitter
Requirements5V DC @ 500mA
UPC / EAN Barcode icon
UPC 813280021869
EAN 0813280021869
