HDMI, IR, RS-232 Point to Point CAT5 Extender Transmitter

HDX-TXPlusS

$199.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

The HDX-Plus uses two CAT5 UTP/STP cables to extend HDMI signals such as HDTV output over 200ft (60m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling your video source is easy with the HDX-Plus' bi-directional IR and RS-232 extension. Whether it's for a home entertainment system or a commercial installation, the HDX-Plus delivers flexibility and control.
*Replaces the HDX-1000
*Transmitter Only.

Applications

  • Home theater
  • Corporate/educational presentations
  • Call centers
  • Industrial (long range workstation isolation)
  • Information Terminals/Kiosks
  • Airport Installations
  • Educational Environments with remote displays

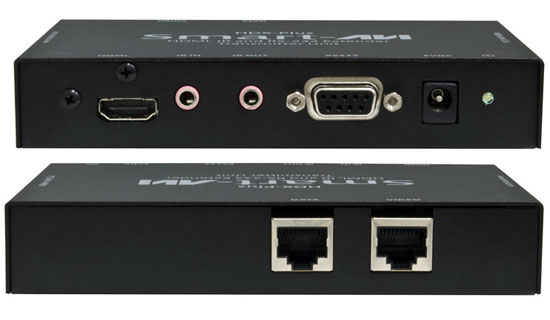

transmitter

Features

  • Extends HDMI output over two CAT5/5e/6 UTP/STP cable
  • Extends IR and RS-232 control signals for remote control
  • Delivers uncompressed HD video up to 1080p@60Hz@48bits and 3D
  • Data signals up to 3.4Gbps
  • HDMI 1.3 and HDCP compliance
  • IR and RS-232 communication are bi-directional
  • Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
  • Transmits 1080p resolution over 200 feet (60 meters) from the source

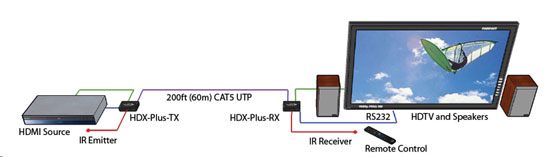

diagram

SmartAVI HDX-PLUS Transmitter Specifications

Mechanical
Height 1.2 in. (3.04 cm)
Width 5 in. (12.7 cm.)
Depth 4.12 in. (10.46 cm.)
FormatHDMI 1.3 and HDCP compliant
HDTV Resolutions480p,720p, 1080i, 1080p/60Hz/48bit
TV Resolution480i
Input InterfaceHDMI Type A 19-pin female TMDS, DB-9 Female
Output InterfaceHDMI Type A-pin female TMDS, DB-9 male
Signal Type38KHz
Interface3..5 mm jack socket (female)
Baud RateUp to 19,200 bps
PowerExternal 100-240 VAC/5VDC2A @ 10W
UPC / EAN Barcode icon
UPC 813280021883
EAN 0813280021883
