4K HDMI + IR/RS232 CAT5 Extender - 400ft (Receiver)



For upgrade or replacement options: Contact Us

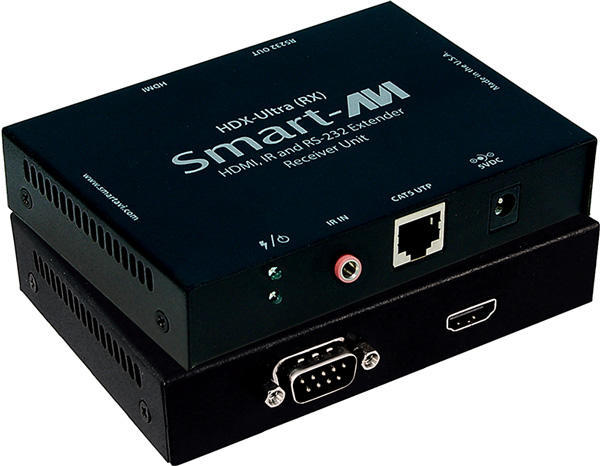

SmartAVI HDX-Ultra-Rx is a Receiver for the HDX-Ultra Extender. The HDX-Ultra uses only one CAT5e/6 UTP cable to extend HDMI signals such as HDTV output over 400 ft from the source. Utilizing HDBaseT technology, the unit is capable of transmitting high-resolution HD video up to 1080p. Controlling your video source is easy with the HDX-Ultra's bi-directional IR and RS-232 extension. Whether it's for a home entertainment system or a commercial installation, the HDX-Ultra delivers flexibility and control.

  • Extends HDMI Output via a Single Cat5 Cable up to 450 ft. from the Matrix
  • Utilizes IR and RS-232 Signals for Remote Control
  • Delivers Uncompressed HD Video up to 1080p @ 60Hz @ 48bits and 3D
  • Data Signals up to 3.4 Gbps
  • HDMI 1.3 and HDCP Compliant
  • Bi-directional IR and RS-232 Communication
  • Transmits High-Quality Dolby TrueHD and DTS-HD MA Audio

SmartAVI HDX-ULTRA-S Application Diagram

SmartAVI HDX-ULTRA-S Application Diagram

 SmartAVI HDX-ULTRA-RXS Specifications:

Width5.0 in. (12.7 cm.)
Height1.125 in. (2.85 cm.)
Depth4.125 in. (10.47 cm.)
Weight0.6 lb. (0.27 kg.)
FormatHDMI 1.3 and HDCP compliant
HDTV Resolutions480p, 720p, 1080i, 1080p/60Hz/48bit
TV Resolutions480i
Input Interface (TX)HDMI Type A 19-pin Female TMDS
Output Interface (RX)HDMI Type A 19-pin Female TMDS
Input Cable Length (TX)Up to 40ft.
Output Cable Length (RX)Up to 40ft.
FormatDolby TrueHD, DTS-HD MA
Input Interface HDMI (Integrated)
Output Interface HDMI (Integrated)
Signal Type38 KHz
Interface3.5mm Jack Socket (Female)
Baud RateUp to 19,200 bps
Input Interface (TX)DB-9 (Serial) Female
Output Interface (RX)DB-9 (Serial) Male
Cable RequirementsCat5/5e/6
Maximum Length330 (100 meters)
PowerExternal 100-240 VAC/5VDC2A @ 10W
Operating Temperature0-55 °C (32-131°F)
Storage Temperature-20-85 °C (-4-185 °F)
HumidityUp to 95%
ApprovalsUL, CE, ROHS Compliant
