SmartAVI HDMI-A 1.3 Cat5e/6 Wall Extender


FREE Shipping on orders over $100

The SmartAVI HDX-W100 is an HDMI over Cat5e/6 wall extender that utilizes slim wall plates to keep the wires as concealed as possible while providing 150ft high-quality HD video extension. The device supports high-resolution video up to 1080p (@60Hz). The unit makes controlling the attached video source easy with its bi-directional IR communication, so users can adjust the source while at the screen's location, hundreds of feet away. For corporate, academic, industrial and home applications, the HDX-W100 provides a fully-integrated solution for HDMI extension. Both the transmitter and receiver can be powered through a single 12V power adapter connected to the transmitter.

SmartAVI HDX-W100 Features:

  • Extends HDMI Output over a Single Cat5e/6 Cable
  • Extends IR Control Signals for Remote Control
  • Supports uncompressed HD video up to 1080p (@60Hz)
  • HDMI 1.3 and HDCP Compliant
  • Supports Bi-Directional IR Communication
  • Transmits high-quality Dolby TrueHD and DTS-HD Audio Signals
  • Supports Automatic EDID Callback
  • Compatible with DVI-D with Converter
  • Cascadable for Additional Extensions
  • VESA DDC and Hot Swap Technology (HPD)
  • Receiver Features POE

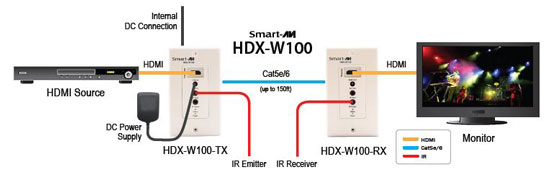

SmartAVI HDX-W100 System Application Diagram
SmartAVI HDX-W100 System Diagram

SmartAVI HDX-W100S (HDX-W100 System) package includes: HDX-W100TX Transmitter, HDX-W100RX Receiver, PS12V2A Power Supply

SmartAVI HDX-W100 Specifications:

ResolutionUp to 1080P @60Hz
Audio FormatUp to PCM 8 Channel, Dolby Digital, TrueHD, DTS-HD Master Audio
IR Range38kHz
Input Video Signal1.2 Volts Point-to-point
Input DDC Signal5 Volts Point-to-point
I/O Connectors (Transmitter)
InputTransmitter: HDMI-A, 3.5mm jack for IR Reciever, 12V DC Input
OutputRJ45, 3.5mm jack for IR Emitter
I/O Connectors (Receiver)
InputRJ45, 3.5mm jack for IR Receiver, 12V DC Input
OutputHDMI-A, 3.5mm jack for IR Emitter
Operating Temperature32 to 104 F (0 to 40 C)
Storage Temperature-4 to 140 F (-20 to 60 C)
Safety ComplianceFCC, CE, RoHS


UPC / EAN Barcode icon
UPC 813280018166
EAN 0813280018166
