SmartAVI HDMI 4x1 Switch. Includes: [HR-4P & PS5VDC1A-C]

HR-4PS

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100

The SmartAVI HR-4PS is a HDMI Router/Switch 4Port Includes HR-4P and PS5VDC1A-C. Using SmartAVI's HR-4PS, it is possible to connect four HDMI components to one display screen for seamless switching between sources. Transmit high-definition source such as Blu-ray player, gaming console, computer or cable receiver easily while viewing on one HDTV monitors. This is perfect for educational lectures, corporate meeting rooms, bars and lounges.

A great example of the HR-4PS in action would be a bar showing a live football game; during half time, the unit could be switched to another source for entertainment such as music videos on DVD or Blu-ray, another sports even via cable or satellite or even a PowerPoint presentation from a computer displaying half time specials on drinks and appetizers, etc. Once the game resumes, the display can be switched right back using the unit's infrared control from anywhere in the building.

SmartAVI HR-4PS Features:

  • Support HDMI 1.3b deep color signal
  • Maintains 480p, 720p, 1080i and 1080p video formats.
  • Supports HDMI 1.3 digital audio format LPCM/Dolby-AC3/DTS7.1/DSD
  • Manual operated or IR remote control both are available
  • ATC & HDCP compliant
  • Connect Four HDMI Components to an HDTV Monitor
  • Seamless Switching Between HDMI Sources

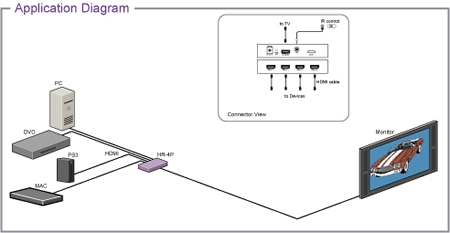

SmartAVI HR-4PS Application Diagram
SmartAVI HR-4PS Application Diagram

SmartAVI HR-4PS Specifications:

Mechanical
Width 72.5 mm. (2.85 in.)
Height 24 mm. (0.9 in.)
Depth 120.5 mm. (4.74 in.)
Input HDMI F Connector 4
Output HDMI F Connector 1
Select Method Front Push Button & IR Remote
Bandwidth 2.25 Gbps
Resolution 480i, 480p, 720i, 720p, 1080i, 1080p
Transmission Max 15 meters
EX. Power Adapter DC5V1a
Housing Metal
UPC / EAN Barcode icon
UPC 813280022033
EAN 0813280022033
Question: We are a church trying to switch between two computers on our main projector. The issue we are having is the screen going to the blue "searching for signal" screen in the time right after the switch is made. Does your switcher lose the signal to the projector for a brief period of time or is it truly seamless?
Answer: Thank you for your inquiry. Unfortunately, no switch will be 100% truly seamless as the output is not being fed to all attached devices. When selecting new target devices, there will be some latency, however brief.

That being said, SmartAVI is a higher end manufacturer, and as such will have far less latency and a shorter transition time then entry level products.

When suggesting video switchers, we will most often recommend switches from SmartAVI, like this one, or products from Adder, another high end switching manufacturer.
