HDMI to HDMI and Stereo Audio/SPDIF Converter

HSA-100-S

$159.00$123.90
Save $35.10
FREE Shipping on orders over $100
smartavi_madeinusa

 With the SmartAVI HSA-100 HDMI Separator you can separate your audio signal from the HDMI and send it to external speakers, an audio receiver without digital inputs, or amplifier without digital inputs etc. The HDMI Separator supports optical or analog L/R audio in all digital audio formats including 5.1/7.1 Surround.

Applications

  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio

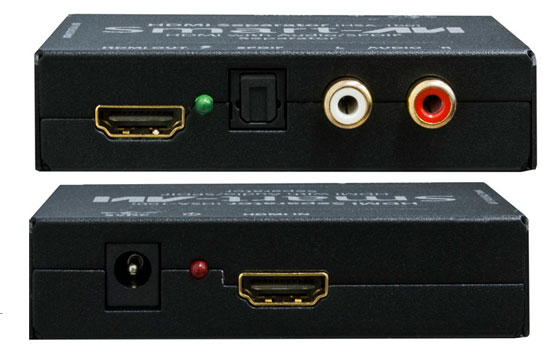

products

Features

  • Compliant with HDMI 1.3, HDCP 1.1 and DVI 1.1
  • Supports HDMI Sample Rates up to 192 kHz
  • Supports Optical Sample Rate up to 48 kHz
  • Supports TMDS clock frequency rate 225MHz
  • Supports high-bit-rate (HBR) audio
  • HDMI cable distance testing showed that with 1080p 8bit resolution, the input & output can run up to 15 meters
  • Low power consumption

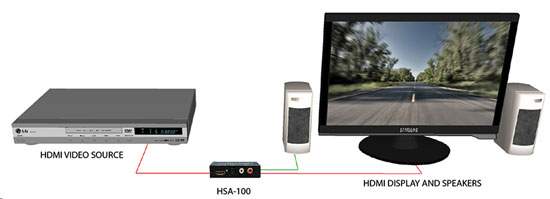

diagram

SmartAVI HSA-100 Specifications

Mechanical
Height 0.87 in. (2.2 cm)
Width 3.37 in. (8.55 cm.)
Depth2.5 in. (6.35 cm.)
Weight0.83 lbs.
FormatHDMI 1.3b
DVI ComplianceSingle Link DVI-D 1.1
HDCP Compliance1.0/1.1
Video Input BandwidthSingle link 340 MHz [10.2 Gbps]
Video  Resolution480i, 480p, 720i, 720p, 1080i, 1080p
Input Interface(1)  HSMI [7.1ch audio & video]
Frequency Response20Hz to 20 KHz
Impedance600 ohm
Common ModeRejection at 60db
Audio Output level0.5 ro 0.6 V peak to peak
PowerExternal 100-240 VAC/5VDC2A @ 10W
UPC / EAN Barcode icon
UPC 813280022040
EAN 0813280022040
