Gefen 2 Port VGA/DVI Cross-Platform KVM Switch

HW-KS-241

$149.00

Discontinued
Recommended replacement: StarTech SV231DDUSB
Alternative options: Contact Us

The Gefen HW-KS-241 is a KVM Switch which enables you to switch easily and reliably between any combination of two VGA (or DVI) & PS/2 equipped computers - using only one keyboard, VGA or DVI monitor, and mouse. The VGA/DVI cross-platform switcher saves space - there's no need to work on a desk crowded with double monitors, keyboards and mouse devices.

How the KS-241 Switch works:

The KS-241 switcher switches VGA or DVI and PS/2 between two computers located near each other. Simply plug your peripherals directly into the back of the switch, connect the cables to the computers you want to control, push the front panel buttons to select the computer you want to work on, and you're switching. Switching between computers can also be done from your keyboard.

Note: A DVI-I to VGA video adapter will be required in order to switch VGA monitors. Being a DVI-I switcher, the product handles both DVI-D and VGA signals through one DVI-I video connector.

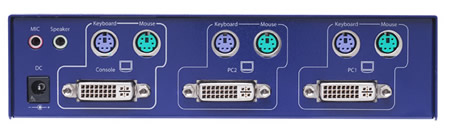

Gefen HW-KS-241 KVM Switch Backside
Gefen HW-KS-241 KVM Switch Backside

Gefen KS-241 Features:

  • PS/2 console works with Win98/SE/ME/2000/XP, WinNT, HP Unix, Linux, Sun Solaris, Mac O.S 8.6 or later version
  • No software driver installation needed
  • Manage multiple PCs, G3/G4 MACs, iMACs from one PS/2 keyboard, PS/2 mouse and monitor
  • Legacy Control: PS/2 keyboard and PS/2 mouse control all PCs
  • Add PCs or remove connected PCs for maintenance without powering down the PC
  • Use push button or hot key control for easy computer selection
  • Auto scan mode for monitoring all PCs
  • LED display for easy status monitoring
  • Buzzer sound for switching port confirmation
  • High VGA resolution 1920 x 1440 and high bandwidth 200MHz
  • Supports VGA, DDC, DDC2, DDC2B

Package Contains:

  • 1 x KS-241 keyboard-video-mouse (KVM) switching unit
  • 2 x 6ft VGA cables
  • 4 x PS/2 6ft Cables
  • 1 x 12V DC Power Supply
  • 1 x User's Manual

Gefen KS-241 Specifications:

Mechanical
Height 1.75 in. (4.45 cm.)
Width 7.2 in. (18.3 cm.)
Depth 6 in. (15 cm.)
Weight 2 lbs. (0.9 kg.)
Environmental
Operating Temperature 0 - 40 degrees C
Storage Temperature -20 - 60 degrees C
Humidity 0 - 90% Non-Condensing
Power 12V DC Power Supply / 10W Power Consumption (max)
Inputs DVI-I x 1, PS/2 Keyboard x 1, PS/2 Mouse x 1
Outputs DVI-I x 2, PS/2 Keyboard x 2, PS/2 Mouse x 2
