ATEN Non-powered RS-232 Line Driver
IC150
ATEN IC150 Non-powered RS-232 Line Driver
The ATEN IC150 needs no external power supply and can extend RS232 signals for data transfer.
ATEN IC150 Non-powered RS-232 Line Driver Features and Benefits :
- No external power required.
- DCE/DTE switch selectable.
- Analog loop back.
- Compact size.
- Full Duplex / Simplex Switch Selectable.
- OS Compatibility: DOS, WIN98, WIN ME, WIN NT, WIN 2K and WIN XP.

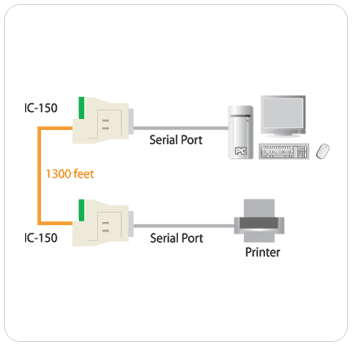

ATEN IC150 Non-powered RS-232 Line Driver
ATEN IC150 Non-powered RS-232 Line Driver Specifications:
| Connectors | 1 DB-25 Female (RS-232) | |
| 1 x RJ-11 Jack (Female) | ||
| 4 Post Terminal | ||
| Switches | SW1 | DCE, DTE Loop Back Select |
| SW2 | Full Duplex / Simples Select | |
| Cable Length | 10 km (max.) @ 110 bps | |
| 800 m (max.) @ 19200 bps | ||
| Data Transfer Speed | 100 ~ 19200 bps | |
| Power Consumption | Power from RS-232 Interface (no external power required) | |
| Housing | Plastic | |
| Weight | 60 g | |
| Dimensions ( L x W x H ) | 5.4 x 7.45 x 1.85 cm | |
