ATEN RS-232 to RS-422 Bidirectional Converter

IC485SI

$98.95

Discontinued
Replaced by: ATEN IC485AI
Alternative options: Contact Us

ATEN (IC485SI) RS-232 to RS-422 Bidirectional Converter
The ATEN IC485SI is hardware solutions to the problem of converting signals between two standards. Data transfer can take place at up to 1200m (4000'), over four or two wire cable for full or half duplex, respectively. The ATEN IC485SI converters can handle any RS-422 device allowing it to function as a short haul modem or interface converter. Request to send (RTS) selection allows up to 32 receivers to be set up in a multidrop installation, making for a cost effective network configuration. The ATEN IC485SI 2000V Isolated Converter has built in optocouplers for exceptional signal isolation, and transformers for excellent power isolation. This extremely reliable isolated converter is designed to enhance the quality of data communication and protect your equipment from an electrical surge of up to 2000V.

ATEN (IC485SI) RS-232 to RS-422 Bidirectional Converter Features:

  • Data Transmission Controlled by the RTS Signal DCE/DTE
  •  Selectable Point to Point, Multidrop and Simplex/Duplex Link
  • Selectable Four Wire Full Duplex / Two Wire Half Duplex Signal and Power Isolation
  • Compact Size

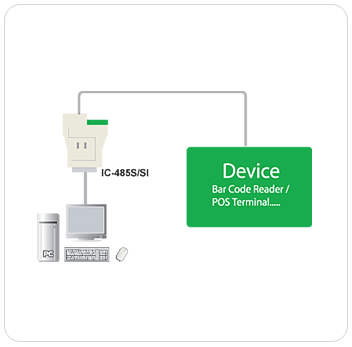

ATEN (IC485SI) RS-232 to RS-422 Bidirectional Converter
ATEN (IC485SI) RS-232 to RS-422 Bidirectional Converter

ATEN (IC485SI) RS-232 to RS-422 Bidirectional Converter Package Content:
1 IC485SI bi-directional isolated converter 1 Power adapter 1 User manual 1 Warranty registration card

ATEN (IC485SI) RS-232 to RS-422 Bidirectional Converter Specification :


Case
Height 14.75 in. (37.465 cm.)
Width 13.75 in. (34.925 cm.)
Length 20.5 in. (52.07 cm.)
Case Qty. 20
Package Dimensions
Depth 2.3 in. (5.42 cm.)
Width 9.5 in. (24.13 cm.)
Height 6.30 in. (16.002 cm.)
Weight
Case Wt. 23.75 lbs. (10.6875 kg.)
Package Wt. 0.8 lbs. (0.361 kg.)
Unit Wt. 0.1 lbs. (0.045 kg.)
Dimensions
Depth 0.8 in. (2.032 cm.)
Width 2.2 in. (5.58 cm.)
Height 3.2 in. (8.128 cm.)
Operating Temperature 68 ~ 122 ° F ( 20 ~ 50 ° C)
Storage Temperature 32 ~ 158 ° F ( 0 ~ 70 ° C)
UPC / EAN Barcode icon
UPC 672792150432
EAN 0672792150432
