ATEN RS-232 to RS-485/RS-422 Bidirectional Converter

IC485SN

$67.00$53.59
Save $13.41
FREE Shipping on orders over $100

ATEN (IC485SN) RS-232 to RS-485/RS-422 Bidirectional Converter
ATEN's IC485SN is hardware solutions to the problem of converting signals between two standards. Data transfer can take place at up to 1200m (4000'), over four or two wire cable for full or half duplex, respectively. The ATEN's IC485SN converters can handle any RS-485/RS-422 device allowing it to function as a short haul modem or interface converter. Request to send (RTS) selection allows up to 32 receivers to be set up in a multidrop installation, making for a cost effective network configuration. ATEN's IC485SN is a bi-directional interface converters for RS-232 and RS-485. With the IC-485 series, it provides Point-to-Point, Multidrop and Simplex operations.

ATEN (IC485SN) Bidirectional Converter Features Benefits:

  • Data Transmission Controlled by the RTS Signal DCE/DTE Selectable Point to Point, Multidrop and Simplex/Duplex Link
  • Selectable Four Wire Full Duplex / Two Wire Half Duplex Non Powered Operation Compact Size

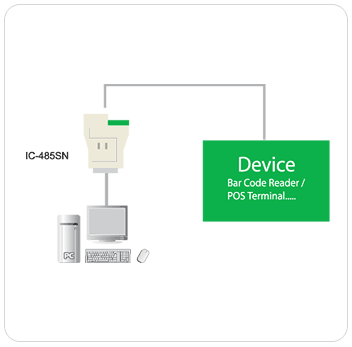

ATEN IC485SN Function Diagram
ATEN (IC485SN) Bidirectional Converter Function Diagram


ATEN (IC485SN) Bidirectional Converter Package Content:
1 IC485SN bi-directional isolated converter 1 User manual 1 Warranty registration card

ATEN (IC485SN) Bidirectional Converter Specifications:

Case
Width 9.0 in. (22.9 cm)
Height 12.0 in. (30.5 cm)
Length 20.3 in. (51.4 cm)
Case Qty. 20
Package Dimensions
Height 6.3 in. (16.0 cm)
Depth 2.3 in. (5.4 cm)
Width 9.5 in. (24.1 cm)
Housing
Case Plastic
Weight
Package Wt. 0.5 lb. (0.3 kg)
Case Wt. 13.5 lb. (6.1 kg)
Dimensions
Depth 0.8 in. (2.1 cm)
Width 2.2 in. (5.6 cm)
Height 3.2 in. (8.1 cm)
Data Rate Up to 100 Kbps under 4000ft. (1200m)
Function Switches SW1(DCE, DTE), SW2(TxON, RxON,TxRTS, RxON,TxDTR/RTS, RxDSR/ON)
Cable Distance 4000 ft. (1200 m)
Connectors 1 DB-25 Female, RS-485 / RS-422 Four Terminal Block, RJ11
UPC / EAN Barcode icon
UPC 672792142017
EAN 0672792142017
