The iP-820 requires a NEMA 5-20R receptacle with a 20 Amp service. If you do not have this you can not use the iP-820
Demo iPal Now! - When it requests a User Name and Password, leave the User Name blank and enter "PASS" for password. Feel free to play with our servers, it is fun!
Dataprobe iP-820 Web/Telnet controlled 8-Outlet Power Strip
These Remote Controlled Power Strips (iP-820) allow web browser control of eight A/C power outlets. These units connect directly to 10baseT Ethernet and are IP addressable. Each outlet can be independently turned on, off or cycled for power-on reset (re-boot). 4 outlet models can be easily expanded to eight outlets. These Dataprobe iP-820 units use standard NEMA 5-15 North American Line cord and Outlets.
Dataprobe iP820 Operation
The Dataprobe iP-820 are controlled from a web browser. Once a connection is established and a security login is approved, each of the outlets can be controlled by clicking on the appropriate hotlinks. Toggle and Timed Cycle functions are provided. The status of each outlet is clearly displayed. The Dataprobe iP-820 unit can also be controlled from a Telnet client using menu selections.

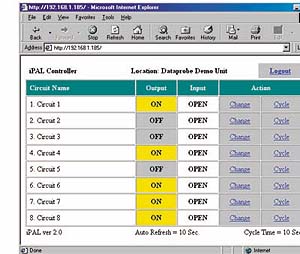

Dataprobe iP-820 Web Browser Diagram
Dataprobe iP-820 Remote Reboot Features:
- Indicator lamps display status of each outlet
- User defined names for each outlet
- Serial Port for Out-of-Band Backup Access
- Internal Modem Option
Dataprobe iP-820 Remote Reboot Specifications:
|Height||1.75 in. (4.45 cm.)|
|Width||19 in. (48.26 cm.)|
|Depth||8.75 in. (22.23 cm.)|
|15 Amp Models: NEMA 5-15 plug, Six foot line cord 14/3|
|20 Amp Models: NEMA N5-20 plug, Six foot line cord 12/3|
|10base-T Ethernet, D9 Serial or RJ11 Line with Modem Option|
|Standard 3 prong NEMA 5-15 connection. 12 Amps max. per receptacle|
|TOTAL Max. Current Rating For All Connected Devices|
|15 Amps for iP-820 and iP-415, 20 Amps for iP-820 and iP-420|
