IR Emitter 6 Single LED

IR-LED

$20.00$15.58
Save $4.42
FREE Shipping on orders over $100
smartavi_madeinusa

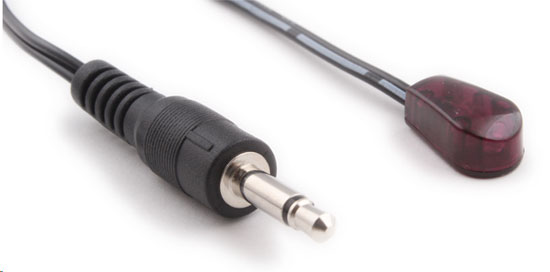

The IR-LED is designed to work in combination with the IR-EYE receiver (sold separately). The IR-LED transmits the signal from the IR-EYE (via an infrared extender) to the media center device, so that an infrared remote control can be used to control it.

product

Applications

  • Audio Visual equipment
  • Home appliances
  • Infrared remote control toys
  • Industrial control devices
  • CATV set top boxes
  • Optical switches

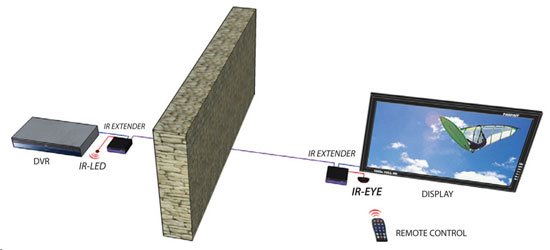

diagram

SmartAVI IR-LED Specifications

Mechanical
Height 0.5 in. (1.27 cm)
Width 0.5 in. (1.27 cm.)
Depth 1 in. (2.54 cm.)
Weight0.2 lbs
Signal TypeTTL
Frequency 20-60 KHz
Receiving  Range10'-50'
Connector3.5 mm quad mini phone
CompatibilityIR-EYE Type 3
Approvals UL, CE, ROHS Compliant
