4K LCD Console Drawer - 1U, 18.4" Backlit LCD
K119
Save $204.00
The new CyberView K119 is a 1U 4K 18.4" Rack Mount Monitor Drawer. Featuring a 4K 18.4" LED-backlit LCD display that supports resolutions up to 3840 x 2160 @60Hz with 16.7M colors (8-bit), and 104-key notepad keyboard, and either a touchpad or trackball, the CyberView K119 is the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.
K119 Features and Benefits
- 1U 18.4" 4K LED-backlit LCD console drawer
- 3840 x 2160 @60Hz native resolution / 1.07B colors
- 1920 x 1080 & 1920 x 1200 resolution support
- Display port 1.2 video input / USB KB/MS
- 104-key keyboard with either touchpad or trackball options
- Built-in dual stereo speakers
- Short depth design of 460mm
- One Man installation design
- Enhanced aesthetics with new molded front panel
- Modular for a highly customizable rack console - integrated KVM, peripherals & more
- 6ft CX-6DP DP / USB console cable included
- TAA Compliant
- 2-year standard warranty ( upgradable up to 5 years )
Optional Configurations (Contact us for availability)
- Front USB hub port for device access
- HDMI 2.0 (HDCP 2.2) video input
- 3G / HD / SD-SDI Broadcast-grade input
- DC Power: 12, 24, 48, 125, 250 V DC
- Integrated 8-port 4K KVM Switch options
- Additional languages supported
K119 Package Contents
- (1) K119 Console Drawer
- (1) CX-6DP 6' DP/USB Console Cable
- (1) Power cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
K119 Resources
K119 Brochure (PDF)
K119 Manual (PDF)
K119 Integrated 4K KVM Manuals (PDF)
Cyberview K119 Specifications
| Mechanical | |||||||
| Product Dimensions (W x D x H) |
| ||||||
| Package Dimensions (W x D x H) |
| ||||||
| Net Weight |
| ||||||
| Gross Weight |
| ||||||
| Mounting Distance |
| ||||||
| Console Ports | |||||||
| Video Input | Display port 1.2 | ||||||
| Video Option | HDMI 2.0 / HDCP 2.2 | ||||||
| KB / MS | USB type A x 2 | ||||||
| Console Cable: CX-6DP | Drawer end : DP + USB type A x 2 Server end : DP + USB type A x 2 | ||||||
| LCD Screen | |||||||

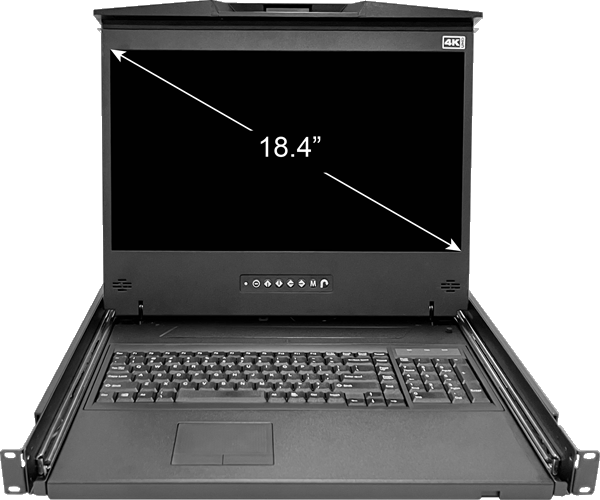

| LCD panel size ( diagonal ) | 18.4" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160 60Hz | ||||||
| Brightness (cd/m2) | 300 | ||||||
| Colors | 1.07B | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 85/85/85/85 | ||||||
| Response time ( ms ) | 15 | ||||||
| Dot pitch ( mm ) | 0.1065 | ||||||
| Display area ( mm ) | 408.96H x 230.04V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 30,000 | ||||||
| Audio (optional upgrade) | |||||||
| Speker | 2x 2W (Dual Stereo) | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption (Single Console / with KVM) |
| ||||||
| Environmental | |||||||
| Operting Temperature | -20 to 70°C degree | ||||||
| Storage Temperature | -20 to 70°C Degree | ||||||
| Operating Humidity | 10~90%, non-condensing | ||||||
| Relative Humidity | 5~95%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD & UKCA certified | ||||||
| Environment | REACH & RoHS3 / WEEE compliant |
