2 Port DVI-I Secure EAL4+ KVM Switch with Audio



Replaced by: SmartAVI SDVN-2S
Alternative options: Contact Us


  • Validated to EAL 4+ security standards
  • Complies with Common Criteria Protection Profile 2.1
  • Manage two connected computers in isolation
  • Advanced scaling enables no quality loss
  • Unidirectional data paths
  • Dedicated processors for emulation
  • USB port protection

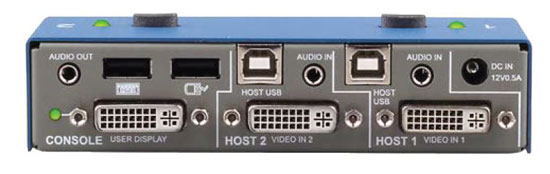

SmartAVI K202B-SH Rear
SmartAVI K202B-SH Unit Rear

The K202B secure KVM switch features the most protections and separations between connected computers available on the market. This KVM switch eliminates points of vulnerability that have plagued other KVM units.

With two connected computers, the K202B offers impressive levels of communications, even when connecting computers that are on different levels of security clearance and Internet access. K202B utilizes unidirectional optical data-diodes which insulates all connections from any possible points of data leakage among peripherals. Every K202B secure KVM switch is rigorously and extensively tested to ensure it will remain stalwart against any known form of KVM security attacks. The unit has been certified to meet EAL 4+ standards to assure it provides the highest level of security possible. This KVM can also be used to securely filter and lock USB ports preventing data export/import through mass-storage devices by hardware.

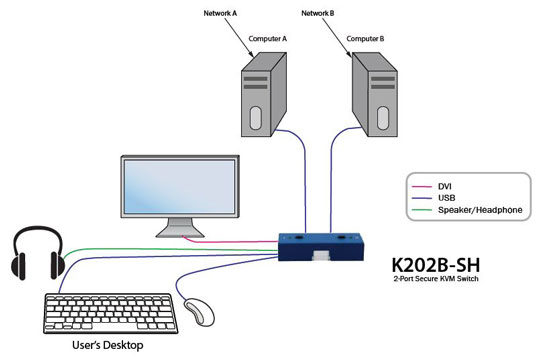

SmartAVI K202B-SH Application Diagram

Host Computer Input Ports2 input ports, each including 1 DVI-I Female connectors, 1 USB Type-B connector for keyboard and mouse, 1 Audio input 3.5 mm stereo jack
Console Ports1 DVI-I Female Connector, 2 USB Type-A jacks for keyboard and mouse
and 1 Audio output 3.5 mm stereo jack
ManagementChannel select/status LEDs, channel select push-buttons, keyboard hotkeys (optional - can be disabled)
Video Modes SupportedAll DisplayPort 1.2 resolutions up to 3840x2160 x30 bpp @60 Hz
Supports 17.28 Gbits @ a 4-lane link
Security FunctionsUSB ports supporting only keyboard and mouse through host emulation and strong filtering
Optical Data Diode assures unidirectional flow from devices to computers
Changing Firmware (on ROM) cannot cause leakage between channels or data export
Isolated power supplies for each device emulator
Battery powered anti-tampering system to disable product in case of mechanical intrusion
Special holographic Temper Evident Labels
PowerDC input 12V/0.5A maximum
Wall-mounted power supply included. Power input 90-240V AC
Peripheral SecurityUSB ports supporting only keyboard and mouse through host emulation
Data-diode assures USB unidirectional flow from devices to host
Firmware change can not cause leakage between channels or data export
EnvironmentalTemperature range: Operating - 0°C to 40°C (32°F to 104°F); Storage - -20°C to 60°C (-4°F to 140°F)
Humidity: Operating - 20 to 80% non condensing; Storage - 10 to 90% non condensing
Altitude: 0 to 10,000 ft
Regulatory ComplianceSafety: UL/cUL60950,EN60 950
EMI/EMC: FCC Class B, CE Mark, EN55022B, VCCI
Security AccreditationsCommon Criteria EAL 4+ certified ALC_FLR.3 certified
Designed for Common Criteria EAL-5
Complies with latest NIAP Peripheral Sharing Switch (PSS) For Human Interface Devices Ver 2.1
Physical CharacteristicsDimensions: 57(D) x 135 (W) x 33 (H) mm / 2.2 (D) x 5.4 (W) x 1.3 (H) in
Device weight: 0.75 Kg (1.6 lbs)
Shipping Weight: 0.9 Kg (2 lbs) without cables
